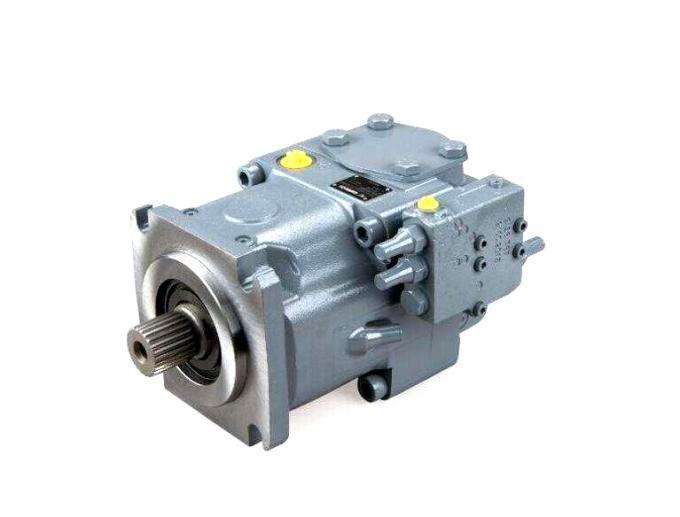

The Rexroth A11VLO260 represents a pinnacle of engineering in the realm of industrial hydraulic pumps.As a premier example of an axial piston pump,it is engineered to deliver exceptional performance,reliability,and control in the most demanding hydraulic systems.This model is a variable displacement pump operating on the swashplate principle,designed primarily for open-circuit applications in mobile and industrial machinery.Its robust construction and advanced control systems make it a cornerstone for powerful equipment requiring precise hydraulic power management,from construction machinery to industrial presses.This article provides a comprehensive exploration of the A11VLO260,delving into its technical intricacies,operational advantages,and the critical knowledge required for its successful application.

  1.Product Overview and Core Design Philosophy

  The Rexroth A11VLO260 is a heavy-duty,variable displacement axial piston pump that belongs to Bosch Rexroth's renowned A11VO series.The fundamental operating principle of this industrial hydraulic pump involves a rotating cylinder block containing multiple pistons.These pistons are connected to a swashplate,and as the block rotates,the angle of the swashplate causes the pistons to reciprocate,thereby drawing in and pumping out hydraulic fluid.The displacement,or the amount of fluid pumped per revolution,is varied by changing the angle of the swashplate,allowing for seamless control of the hydraulic system's output.

  The"LO"in its nomenclature often signifies a specific configuration,typically related to its control type,such as load-sensing(LR)for optimal energy efficiency.The"260"denotes a nominal displacement of 260 cm³per revolution,positioning it for high-flow,high-power applications.The pump is designed to operate at impressive pressures,with a nominal rating of 350 bar and the ability to handle peak pressures up to 400 bar,making it suitable for heavy-load scenarios.Its design is focused on achieving high power density,meaning it delivers substantial power from a relatively compact unit,a critical factor in space-constrained machinery.

  2.In-Depth Technical Specifications and Architecture

  Understanding the build and capabilities of the A11VLO260 is key to appreciating its performance.The pump is constructed from high-strength materials,with a cast iron housing for durability and resistance to deformation under high pressure,and hardened steel used for critical components like the pistons,cylinder block,and swashplate to ensure long-term wear resistance.

  Key performance specifications include a maximum operating pressure of 350 bar(400 bar peak)and a nominal displacement of 260 cm³/rev.The allowed rotational speed can vary with specific configuration but is typically in the range of 2100 rpm.A key feature of many A11VLO260 pumps is the integrated flushing valve,which is crucial for managing case drain flow and maintaining optimal operating temperatures,especially in closed-circuit configurations or when used with hydrostatic transmissions.

  The pump's design often incorporates a through-drive capability,allowing multiple pumps to be stacked in a"piggy-back"arrangement on a single input shaft.This modularity enables the creation of a multi-circuit hydraulic system from a single power source,such as a diesel engine,significantly saving space and complexity in machine design.

  3.Advanced Control Systems and Operational Features

  The intelligence of the A11VLO260 axial piston pump lies in its versatile control options.The pump can be fitted with various control devices to tailor its performance to the specific needs of the application.

  Load Sensing Control(LRDS):This is a highly efficient control system.The pump constantly monitors the pressure required by the load(via an external signal)and automatically adjusts its displacement to provide only the necessary flow and pressure.This minimizes energy loss,reduces heat generation,and improves overall system efficiency.

  Pressure Cut-Off and Power Control(DR/DRS):The pump can be equipped with a pressure cut-off valve(also known as a DR control)that limits the maximum system pressure,protecting the system from overpressure.More advanced versions combine this with a constant power control(LRDS),which reduces displacement to maintain a constant power output(P*Q=constant)as system pressure increases,preventing the engine from stalling.

  Electro-Proportional Control:For integration into modern automated systems,the A11VLO260 can be fitted with electro-proportional controls.This allows the pump's displacement and pressure settings to be controlled electronically via a signal from a programmable logic controller(PLC),enabling precise and dynamic control of the hydraulic system.

  4.Primary Applications and Industry-Specific Benefits

  The Rexroth A11VLO260 industrial hydraulic pump is a workhorse in sectors where reliability and power are non-negotiable.

  Construction and Concrete Machinery:It is extensively used as the main pump in concrete pump trucks,where it provides the high-pressure flow needed to operate the boom and drive the concrete cylinders.Its robust design withstands the harsh conditions and pulsating loads typical in these applications.

  Mining and Material Handling:In equipment like excavators,loaders,and drilling rigs,the pump's high power density and pressure capability are essential for powerful digging,lifting,and breaking actions.The load-sensing feature ensures efficient operation,matching output to the demand of the working tools.

  Industrial Presses and Metal Forming:The precise pressure control and stable performance of this axial piston pump make it suitable for industrial presses used in metal stamping and forming,where consistent force is critical for product quality.

  Expanded Perspective:Mastering Hydraulic System Design and Maintenance

  Selecting and maintaining a high-performance pump like the A11VLO260 requires a deep understanding of system integration and preventative care.

  1.Critical Installation and Commissioning Procedures

  Proper installation is paramount for the longevity and reliable operation of the pump.

  Shaft and Coupling Alignment:The pump must be perfectly aligned with the prime mover(engine or electric motor)using a flexible coupling.Misalignment imposes radial loads on the pump shaft,leading to premature seal and bearing failure.The pump's installation guidelines specify a maximum allowable runout and recommend a specific gap between couplings.

  Initial Priming and Contamination Control:Before the first start-up,the pump casing must be completely filled with clean hydraulic oil.Starting the pump dry,even for a few seconds,can cause catastrophic damage.Furthermore,the entire hydraulic system must be meticulously cleaned before commissioning.The oil cleanliness level should be maintained at NAS 9 class or better to prevent abrasive wear of the fine clearances within the pump.

  Start-Up Sequence:The initial start-up should involve"jogging"the motor to check for correct rotation and to allow air to escape.The system should then be run at low pressure,gradually increasing while checking for leaks and unusual noises.

  2.Proactive Maintenance and Troubleshooting Guide

  A proactive maintenance strategy is the most effective way to maximize the service life of the A11VLO260.

  Routine Monitoring:Regularly check the hydraulic fluid temperature,noise levels,and for any signs of external leakage.A sudden increase in noise or temperature often indicates a developing problem,such as cavitation or internal wear.

  Common Failure Modes and Solutions:

  High Noise and Cavitation:This is often caused by a restricted inlet(clogged suction filter),oil viscosity that is too high,or a shaft speed that exceeds recommendations.Ensuring proper suction line design and using oil of the correct viscosity is crucial.

  Low Flow/Output Pressure:This can result from the pump operating at a reduced displacement due to an incorrectly adjusted control,a stuck control piston,or excessive internal wear leading to high leakage.

  Shaft Seal Leakage:This is frequently caused by excessive case pressure.The case drain line must be sized correctly and plumbed directly back to the tank without any restrictions.The maximum allowable case pressure is typically very low(around 1-2 bar gauge).

  3.System Integration and Component Sizing

  Integrating the A11VLO260 into a hydraulic system requires careful consideration of auxiliary components.

  Prime Mover Sizing:The engine or electric motor must be sized to handle the pump's power draw at the intended operating pressure and flow.Failure to do so will result in engine lugging or stalling.

  Valving and Filtration:The system must include appropriately sized pressure relief valves,control valves,and a high-pressure filter loop.A pressure-rated suction filter is also recommended to protect the pump from contaminants.The use of a flushing valve is critical in many circuits to cool the oil and purge contaminants.

  Frequently Asked Questions(FAQs)

  1.What is the key functional difference between a pressure cut-off(DR)control and a load-sensing(LR)control?

  A pressure cut-off control is a simple safety and efficiency feature;it reduces the pump's displacement to nearly zero once a pre-set system pressure is reached,holding that pressure with minimal energy waste.A load-sensing control is a more sophisticated,continuous efficiency system.It constantly adjusts the pump's displacement and output pressure to be just slightly higher than what is demanded by the load at that moment,significantly reducing energy consumption and heat generation across the entire work cycle.

  2.Why is the case drain line so critical,and what happens if it is blocked?

  The case drain line allows oil that has leaked internally past the pistons and bearings to return safely to the tank.This leakage is normal and serves to lubricate and cool the internal components.If this line is blocked or restricted,pressure will build up inside the pump's casing.This excessive case pressure can quickly destroy the shaft seal,lead to lubricant film failure,and in severe cases,cause catastrophic mechanical failure by forcing components like the slippers or retainer plate out of position.

  3.Can the A11VLO260 be used in a closed-circuit application?

  While the A11VLO series is primarily designed for open circuits,certain configurations can be adapted for simple closed-circuit systems,such as those in some winch or vehicle drive applications.However,this typically requires the addition of a dedicated flushing valve to manage heat buildup and a charge pump to make up for internal leakage.For complex closed-circuit applications,Rexroth's A4VG series is often a more purpose-built and recommended choice.

  4.How does the integrated auxiliary pump(centrifugal feed pump)function?

  Many A11VLO260 pumps feature a built-in centrifugal pump on the shaft behind the main pump.This is not a supercharger but a feed pump.Its primary function is to ensure a positive pressure head at the inlet of the main axial piston pump,which significantly improves its suction characteristics,prevents cavitation at high speeds or with cold oil,and extends the pump's service life.It allows the main pump to operate effectively even when mounted above the fluid level in the tank.

  5.What are the most critical factors for achieving a long service life from this pump?

  The three most critical factors are fluid cleanliness,proper inlet conditions,and correct commissioning.Maintaining oil cleanliness to NAS 9 or better is paramount to prevent abrasive wear.Ensuring the inlet is free of restrictions and maintains a slight positive pressure prevents cavitation damage.Finally,following the correct start-up procedure,including priming the pump and checking rotation,prevents immediate and irreparable damage on the first day of operation.
