Product Overview

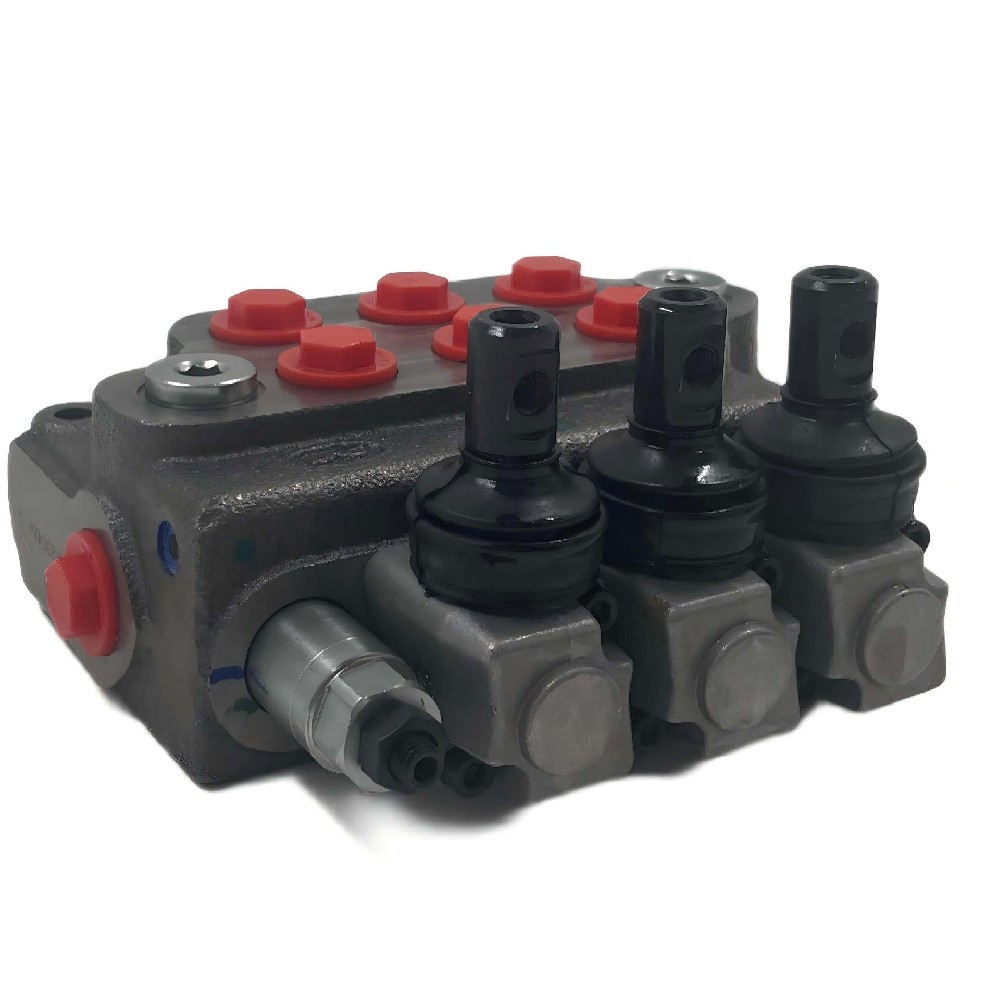

  Walvoil SD5/3-P(JG3-160)/18L/18L/18L/AET is a hydraulic directional valve and manual control valve offering precise flow direction switching with a rated pressure of 31.5 MPa and nominal flow of 45 L/min,designed for mobile and industrial hydraulic systems.

  Product Type Definition

  A hydraulic directional control valve is a device that directs fluid flow from a pump to actuators such as cylinders or motors by opening,closing,or changing internal flow paths.This category typically includes manually operated,solenoid-actuated,and pilot-operated variants based on the actuation method and spool configuration.The Walvoil SD5/3-P falls into the manual monoblock valve segment,featuring a spring-centered three-position spool design with four working ports(P,A,B,T)for direct operator control.

  Key Specifications

  Model:Walvoil SD5/3-P(JG3-160)/18L/18L/18L/AET

  Valve Type:Hydraulic directional spool valve,manual control

  Rated Pressure(max):31.5 MPa

  Nominal Flow Rate:45 L/min

  Number of Spool Sections:1(single section)

  Spool Positions:3 positions(spring-centered to neutral)

  Port Configuration:P(pressure),A/B(working),T(tank)

  Port Thread Size:G3/8 inch(four threaded ports P,A,B,T)

  Actuation:Manual lever

  Technical Highlights

  The valve withstands continuous operation at 31.5 MPa(315 bar)working pressure,verified to ISO 9001 manufacturing standards,making it suitable for medium-pressure hydraulic systems where consistent force transmission is required.

  A 45 L/min nominal flow capacity ensures adequate flow for standard hydraulic actuators such as small to medium cylinders and motors,supporting smooth operation without excessive pressure drop across the valve body.

  All four ports(P,A,B,T)are equipped with G3/8 inch BSPP parallel threads,eliminating the need for port adapters in systems already configured to this standard and simplifying installation and maintenance.

  The spring-centered three-position spool configuration allows the valve to return to neutral automatically when the manual lever is released,a feature essential for safety interlock applications and load-holding circuits.

  The monoblock body construction minimizes external leak paths compared to sectional or stackable valves,contributing to longer service intervals and reduced fluid loss in field applications.

  Applications

  Agricultural machinery(loaders,tractors):Enables operator-controlled direction switching for implement lifting and lowering functions,with response time proportional to lever movement without electrical delays.

  Industrial material handling equipment(forklifts,pallet stackers):Provides manual mast tilt and carriage positioning control,reducing cycle time variability compared to electrically switched systems.

  Construction attachments(hydraulic breakers,augers):Delivers flow on/off and direction reversal for tool actuation,with the manual lever giving operators direct tactile feedback of hydraulic pressure.

  Mobile service vehicles(crane trucks,aerial platforms):Supports outrigger extension and boom positioning,where manual control allows proportional metering and precise speed modulation.

  Machine tool hydraulic circuits(presses,shears):Acts as a directional gate for clamping and cutting sequences,with repeatable spool centering ensuring consistent cycle-to-cycle performance.

  Selection Guidance

  Suitable for:Open-center hydraulic systems operating at up to 31.5 MPa with nominal flow demands not exceeding 45 L/min.

  Suitable for:Applications requiring manual override capability or where electrical power is unavailable or unreliable for solenoid valves.

  Suitable for:Systems already fitted with G3/8 BSPP threaded hoses,fittings,or manifolds,as the valve ports match this standard directly.

  Not recommended for:Systems requiring flow rates above 45 L/min,as higher flows may cause excessive pressure drop and internal leakage that degrades actuator speed consistency.

  Not recommended for:Remotely operated or automated machinery where the valve cannot be accessed by an operator,as this model lacks pilot,solenoid,or proportional electrical actuation.

  Not recommended for:High-cycle-rate applications exceeding 10 cycles per minute over extended periods,where manual lever fatigue may affect operator efficiency.For such requirements,consider a solenoid-actuated or pilot-operated directional valve with remote control capability.

  FAQ

  1.What hydraulic fluids are compatible with the Walvoil SD5/3-P valve?

  Mineral oil-based hydraulic fluids meeting ISO VG 32,46,or 68 are compatible.The valve seals are designed for standard petroleum-based fluids;synthetic or water-glycol fluids require factory consultation for seal material verification.

  2.What is the maximum operating pressure and flow this valve can handle?

  31.5 MPa(315 bar)maximum pressure and 45 L/min nominal flow.Sustained operation at or beyond these limits may cause internal leakage exceeding 10%of nominal flow or permanent spool deformation.

  3.What is the operating temperature range for this manual directional valve?

  -20°C to+80°C ambient temperature,with fluid viscosity maintained between 15 and 400 cSt.Below-20°C,lever effort increases significantly;above+80°C,seal life reduces by approximately 50%per 10°C increment beyond the limit.

  4.How does the SD5/3-P compare to solenoid-operated directional valves?

  Response time is operator-dependent rather than fixed,and no electrical power supply is required.However,the SD5/3-P cannot be integrated into automated control loops,unlike solenoid valves that can be actuated remotely by a PLC or relay logic.

  5.What are the installation requirements for mounting this valve?

  The monoblock valve body requires no separate mounting base;ports connect directly via G3/8 BSPP fittings.The manual lever must have full clearance for its travel arc without obstruction.For applications with vibration exceeding 5 g,additional bracket support is recommended to prevent fatigue loading on port connections.
