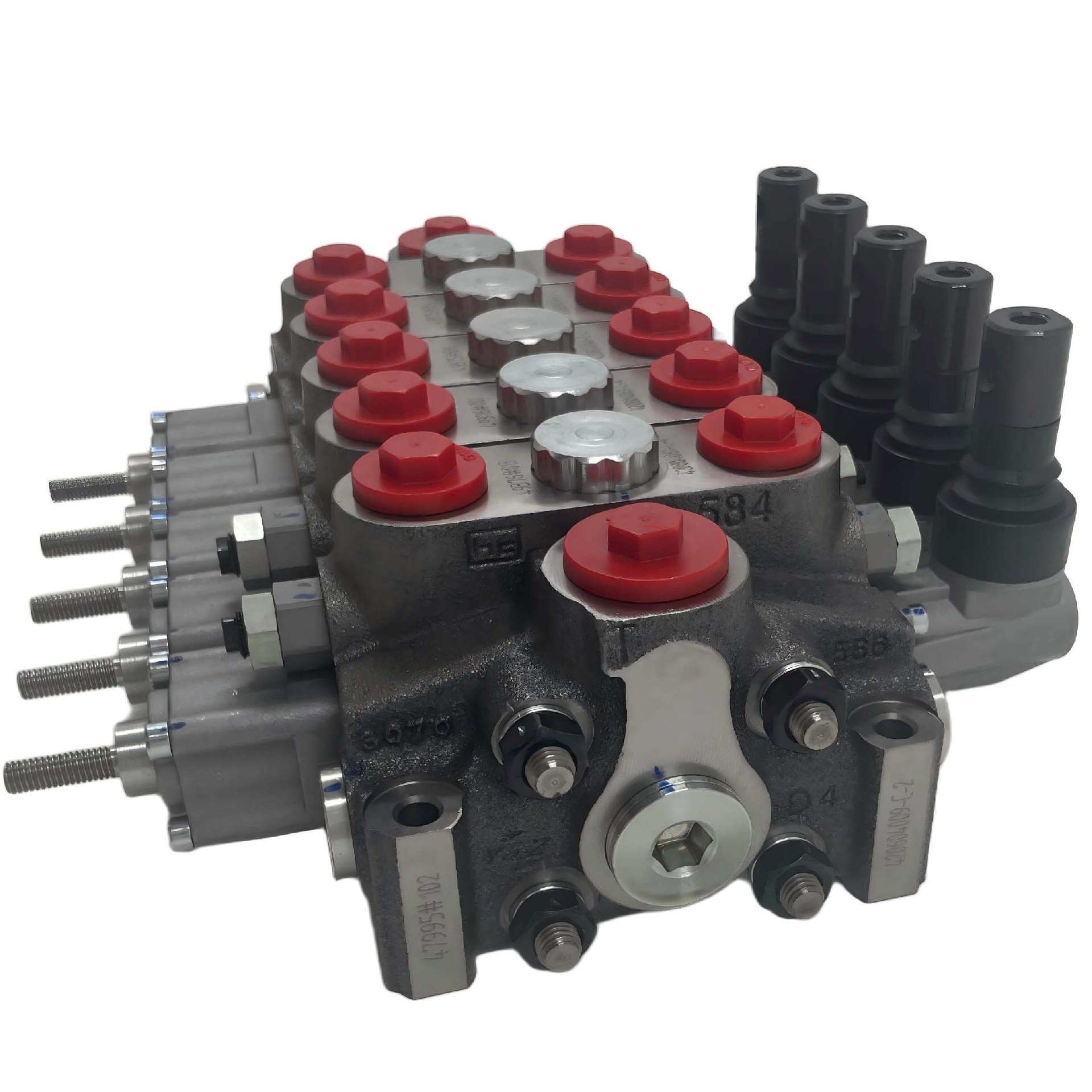

Hydrocontrol HC-D4/5-IL009 is a 5 Spool Hydraulic Control Valve and a Lever Operated Hydraulic Valve engineered for mobile and industrial directional control.Rated for 210 L/min flow and 350 bar pressure,this sectional valve controls double-acting cylinders and motors on ship deck equipment,hydraulic rock drills,and rescue vehicles.

　　What Is a 5-Spool Hydraulic Control Valve?

　　A 5-spool hydraulic control valve is a directional valve assembly that uses five independent spool sections to start,stop,and reverse hydraulic fluid flow to multiple actuators such as cylinders and hydraulic motors.Each spool is typically spring-centered to neutral,and the sections are bolted together in a single manifolded stack,sharing a common inlet and outlet gallery.

　　These valves are built either as monoblock or sectional designs.The Hydrocontrol HC-D4/5 series is a sectional or stack-type valve,where individual working sections and auxiliary elements—such as inlet covers,outlet covers,and intermediate plates—are clamped together with tie rods.This construction allows field reconfiguration,adding or removing spools and integrating features like work-port relief valves or anti-cavitation check valves specific to each actuator circuit.

　　Key Specifications

　　Model Designation:HC-D4/5-IL009(210)AG04 W002AH001F001A-TJ AG05

　　Number of Spools:5

　　Actuation Type:Manual lever,spring-centered

　　Nominal Flow Rate:210 L/min(per manufacturer classification for D4 size)

　　Maximum Operating Pressure(Port P):350 bar

　　Maximum Tank/Return Pressure(Port T):25 bar

　　Valve Type:Sectional,open center(standard configuration)

　　Spool Stroke:±8 mm(typical for D4 series)

　　Work Port Connections:G1(BSPP)or SAE 12 per model code

　　Inlet Connection:SAE flange,size per ordering code

　　Material:Spheroidal graphite cast iron(GJS-400-15 equivalent)

　　Fluid Compatibility:Mineral oil based hydraulic fluids,viscosity range 15–100 cSt

　　Recommended Filtration:ISO 4406 20/18/15 or cleaner

　　Operating Temperature Range:-20°C to+80°C

　　Approximate Weight:48 kg(assembled 5-spool bank)

　　Certifications:Manufactured under ISO 9001:2015 quality management system

　　Note:Exact spool functions,auxiliary options,and port orientations are defined by the full ordering code.Contact the factory with the complete model designation for the configuration matrix.

　　Technical Highlights

　　Sectional architecture allows in-field maintenance without removing the entire valve bank.A frequent question from service technicians is whether a single leaking spool requires changing the whole assembly—it does not.Each spool section can be individually unbolted,replaced,or resealed while the rest of the stack remains on the machine,reducing downtime in marine or mining applications.

　　Ductile cast iron body withstands high-cycle pressure spikes.The spool bores are honed to precise tolerances,maintaining consistent spool-to-bore clearance even after millions of cycles.This directly controls internal leakage,keeping volumetric efficiency stable over the valve’s service life.

　　Work-port auxiliary valves protect against shock loads and cavitation.The model code suffixes indicate integrated options such as direct-acting relief valves and make-up check valves.On hydraulic rock drill feed circuits,these integrated protections prevent cylinder drift and component damage caused by sudden reactive forces from the drill string.

　　Manual lever stations are position-adjustable without hydraulic disassembly.The lever bracket can be rotated to suit operator ergonomics or restricted compartment space by loosening a lock screw,answering a common concern about whether the handle orientation fits tight machinery enclosures.

　　Applications

　　Ship deck machinery:Controls mooring winches,anchor windlasses,and hatch cover cylinders.The lever-operated design provides the deck operator direct,tactile feedback during load-hostile sea states,with 210 L/min flow capacity ensuring rapid line speed under full load.

　　Hydraulic rock drills:Manages percussion,rotation,and feed circuits on surface and underground drill rigs.Integrated anti-cavitation check valves prevent load-induced cylinder creep,improving drill steel life and hole straightness.

　　Road rescue and recovery vehicles:Operates crane booms,outrigger stabilizers,and hydraulic winches from a single 5-function valve block.Combining multiple functions in one stack reduces plumbing connections and potential leak points compared to using multiple discrete single-spool valves.

　　Mobile construction and agricultural equipment:Suited for telescopic handlers,crop sprayers,and compact attachments where manual lever control remains the operator’s preferred interface.The open-center neutral path allows low-pressure circulation when all spools are centered,minimizing thermal load during standby.

　　Industrial press and material handling systems:Directs clamp,eject,and transfer cylinders in scrap baling presses and conveyor diverters.The sectional format allows later addition of a sixth spool if the machine is retrofitted with an extra axis.

　　Selection Guidance

　　Suitable applications:

　　Open-circuit systems using a fixed-displacement pump,where the valve operates as a parallel flow distributor and the total simultaneous flow demand does not exceed 210 L/min.

　　Machines requiring manual lever control of up to five double-acting functions,particularly where electrical control systems are impractical due to environmental conditions or operator preference.

　　Installations anticipating future expansion—the sectional design allows adding,removing,or changing spool sections in the field with simple tools.

　　Not recommended for:

　　Closed-loop or CAN bus networked electrohydraulic systems demanding proportional solenoid control with position feedback.Select an electro-proportional sectional valve such as the Hydrocontrol HCV proportional series.

　　Flow demands consistently exceeding 210 L/min or cyclic pressures above 350 bar,which exceed the fatigue rating of the D4 platform.For higher-capacity needs,consult a D6 or larger platform sectional valve or split the circuit into two parallel banks.

　　Applications using water-glycol or synthetic ester fluids without factory verification.Standard Buna-N seals are compatible with mineral oil.Alternative seal packages must be explicitly specified in the model code at time of order.
