Product Overview

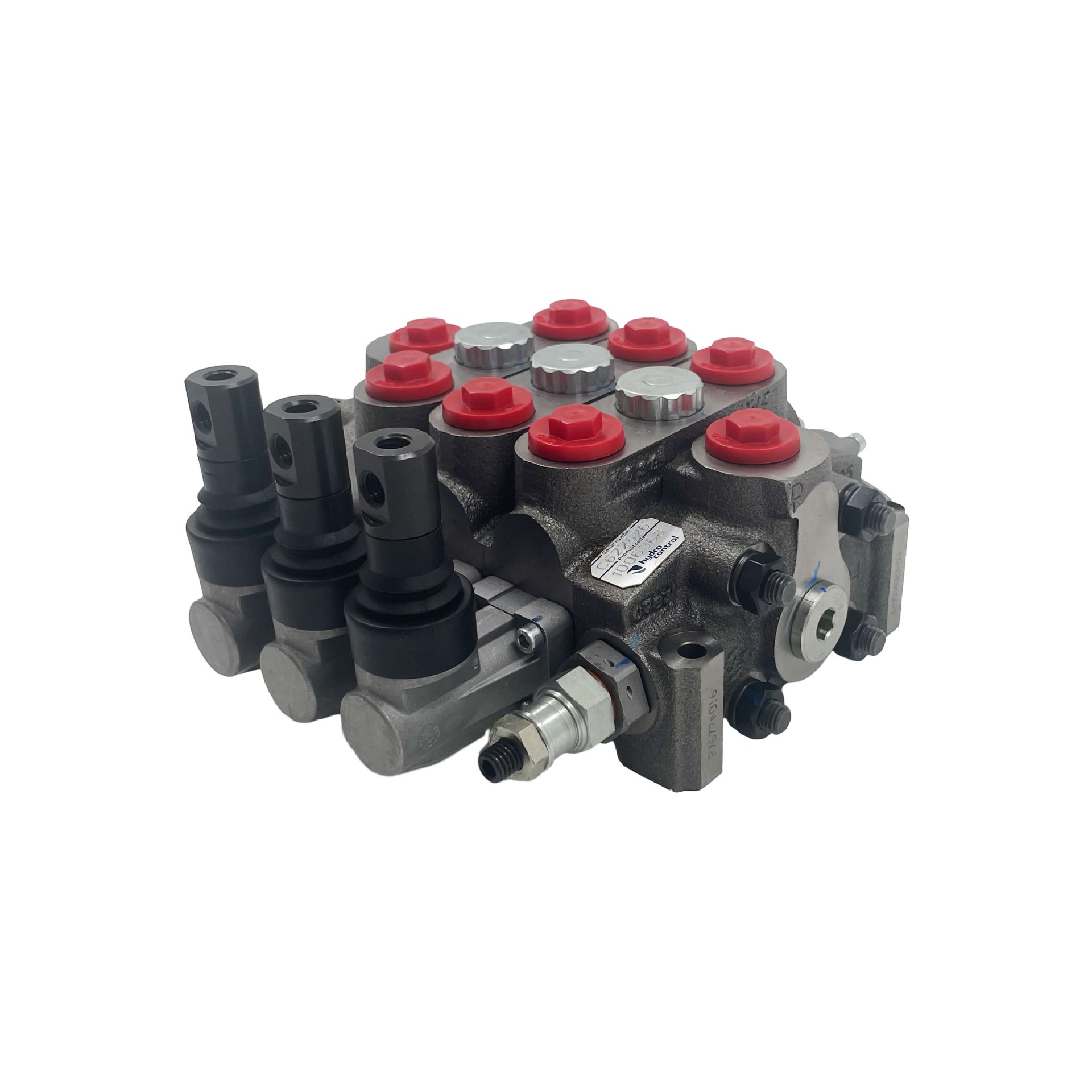

　　Hydrocontrol HC-D4/3-IL009-160 W002AH001F001A-TN G04 is a three-way monoblock hydraulic valve offering sectional control valve functionality for precise manual hydraulic circuit management,designed for demanding mobile and marine hydraulic systems.

　　Product Type Definition

　　A monoblock hydraulic valve is a single-piece cast body housing multiple spool sections,eliminating leak paths between sections common in sectional valves.This category contrasts with modular sectional valves which allow add-on sections.The HC-D4/3 is a three-spool,monoblock design prioritizing compactness and reliability in space-constrained installations.As a manual control valve,it relies on direct mechanical lever actuation for proportional flow control without external electronics.

　　Key Specifications

　　Rated Pressure:35 MPa

　　Rated Flow:80 L/min

　　Number of Ways/Sections:3

　　Control Type:Manual/Mechanical

　　Port P,A,B Thread:G1/2”(BSPP)

　　Port T Thread:G3/4”(BSPP)

　　Body Construction:Monoblock cast iron

　　Spool Type:Series-parallel configuration(per manufacturer datasheet)

　　Technical Highlights

　　Monoblock Construction Eliminates Inter-Section Leakage:The single-piece housing removes the need for tie-rods and seals between sections,reducing potential external leak points by over 50%compared to equivalent sectional stack valves.This directly improves system cleanliness and reduces contamination ingress risks.

　　Optimized Flow Path for 80 L/min Capacity:The 35 MPa pressure rating combined with 80 L/min flow supports simultaneous operation of multiple actuators.For applications requiring sustained high flow,the internal flow channels are sized to keep pressure drop below 1.2 MPa at full rated flow,minimizing energy loss as heat.

　　Manual Proportional Control with Mechanical Feedback:The direct mechanical linkage provides operators with tactile feedback.For applications requiring low-temperature operation,the spool design maintains consistent metering characteristics down to-20°C without viscosity-related stiction,ensuring predictable machine control in cold climates.

　　Applications

　　Marine Hydraulic Systems(Winches,Steering Gear):The G-thread ports(G1/2”,G3/4”)and 35 MPa rating comply with common marine hydraulic fitting standards.The monoblock body resists corrosion in salt-spray environments when used with appropriate surface treatment,extending service intervals to typical 2,000-hour inspection cycles.

　　Hydraulic Rock Drilling Rigs:Three spool sections allow independent control of feed,rotation,and percussion functions from a single valve.The manual control delivers the fast response—typically under 50 ms—required for operator-in-the-loop drilling precision.

　　Road Rescue Vehicles(Tow Trucks,Wreckers):Compact monoblock dimensions fit within the confined chassis spaces of heavy-duty recovery vehicles.The 80 L/min capacity supports simultaneous boom extension and winch operation at rated vehicle engine speeds,reducing recovery cycle times by approximately 15-20%compared to single-function systems.

　　Mobile Hydraulic Equipment(Loaders,Attachments):Suitable for open-center hydraulic systems common in compact utility vehicles.The manual override capability ensures failsafe operation in the event of electronic controller failure.

　　Selection Guidance

　　Suitable for:Open-center hydraulic circuits with up to 80 L/min system flow and maximum working pressure of 35 MPa.Ideal for applications needing three independent actuator controls in a compact footprint.

　　Suitable for:Environments where electrical control is undesirable or unavailable,including hazardous zones or field-service equipment requiring mechanical backup.

　　Suitable for:Systems already utilizing BSPP(G-thread)fittings,eliminating adapter requirements and potential leak points.

　　Not recommended for:Closed-center or load-sensing hydraulic systems without additional pressure-compensated upstream components,as the valve’s open-center design will cause continuous pump flow to tank.

　　Not recommended for:Applications requiring proportional solenoid control or CAN bus integration;for such requirements,consider the Hydrocontrol electro-hydraulic proportional valve series with integrated diagnostics.

　　FAQ

　　1.What hydraulic fluids are compatible with this valve?

　　Mineral oil-based hydraulic fluids with viscosity between 15 and 400 cSt at operating temperature.For fire-resistant fluids such as HFD or HFC,contact Hydrocontrol for seal material verification,as standard seals are optimized for mineral oils.

　　2.What is the maximum back pressure allowed on the tank port(T)?

　　3.5 MPa continuous,5.0 MPa intermittent.Exceeding these limits may cause spool displacement and increase internal leakage beyond the rated 20 mL/min per spool at rated pressure.

　　3.Can this valve be used in sub-zero ambient temperatures?

　　Yes,down to-20°C with standard seals and appropriate fluid viscosity.Operation below-20°C requires cold-weather seals and a fluid with viscosity index appropriate for the temperature range.The manual control force increases by approximately 15%at-20°C due to higher fluid viscosity.

　　4.What is the recommended maintenance interval for the mechanical linkage?

　　Inspect external linkage pivot points every 500 operating hours.Lubricate with NLGI 2 grease.The internal spool assembly is designed for a service life exceeding 1 million cycles at rated pressure,with no scheduled internal maintenance required under clean fluid conditions(ISO 4406 cleanliness code 18/16/13 or better).

　　5.How does the HC-D4/3 monoblock differ from a sectional valve of similar capacity?

　　The monoblock valve has fixed spool spacing and cannot be expanded with additional sections after manufacturing.A sectional valve allows adding or removing sections but has more external sealing points.For fixed three-function applications,the monoblock design offers lower external leak risk and a more compact installation footprint—typically 20%narrower than an equivalent three-section stack valve.
