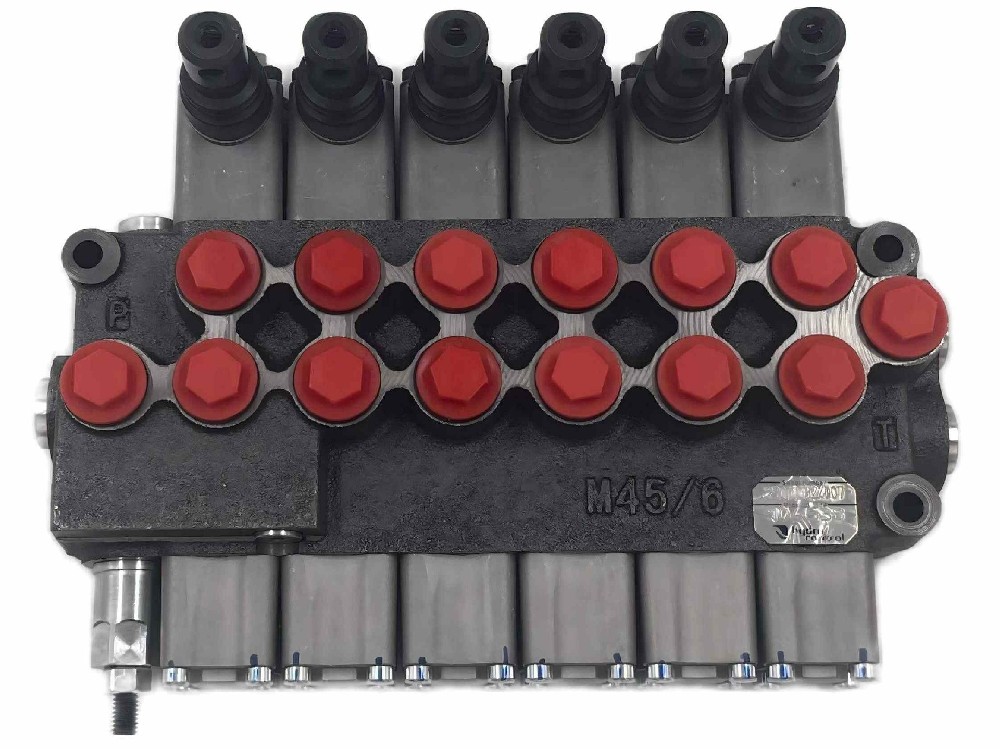

Hydrocontrol HC-M45/6-IR301-(160)W001H001F001*6-AG02 is a 6-section directional control valve of monoblock construction,designed as a stackable hydraulic valve for simultaneous control of up to six hydraulic actuators.With a rated flow of 45 L/min at 350 bar maximum operating pressure,this manual hydraulic valve provides reliable flow direction control for metallurgical equipment,marine hydraulic systems,engineering machinery,and mobile hydraulic applications.

　　Product Type Definition

　　A directional control valve is a hydraulic component that starts,stops,pauses,and changes the direction of fluid flow within a hydraulic circuit.This product category includes two primary construction types:monoblock valves,where all sections are machined from a single solid casting,and sectional(stackable)valves,which allow individual sections to be added or removed.The Hydrocontrol HC-M45/6 belongs to the monoblock valve subcategory,integrating all six spool sections into one unified cast body rather than using modular,stackable sections.This monoblock construction eliminates internal leak paths between sections,making it particularly suitable for applications requiring high reliability and leak-free operation.The“/6”designation in the model number explicitly indicates six independently operable valve sections within a single monoblock housing.

　　Key Specifications

　　Rated pressure:350 bar(5076 psi)

　　Main relief valve setting:160 bar(2320 psi)

　　Rated flow:45 L/min(12 US gal/min)

　　Peak flow capacity:50 L/min

　　Number of sections:6

　　Spool type:O-type(all ports closed in neutral position)

　　Control method:Manual(standard handle box)

　　Return mechanism:Spring-centered(F001)

　　Port thread specification:G3/8″BSPP(British Standard Pipe Parallel)

　　Valve pitch:35 mm(1.38 inches)

　　Spool diameter:16 mm

　　Fluid temperature range:-25°C to+80°C

　　Technical Highlights

　　Fine control grooves on spools:All spools in the HC-M45 series are machined with precision fine control grooves,enabling smooth metering of oil flow and allowing operators to achieve precise speed control even during slow actuator movements.This feature is particularly valuable in applications requiring gradual acceleration or deceleration,such as crane boom slewing or platform leveling.

　　Monoblock construction eliminates inter-section leakage:Unlike sectional valves that require seals between each stacked section,the single-piece cast body of the HC-M45/6 contains no internal mating surfaces.This design eliminates potential leak paths between adjacent sections,reducing fluid loss risk and improving system cleanliness—a critical advantage in metallurgical and marine environments where fluid contamination from external leaks poses safety and environmental concerns.

　　Built-in main pressure relief valve:The valve incorporates an adjustable main relief valve preset to 160 bar,protecting the entire hydraulic system from overpressure conditions.Operators can adjust the relief setting using a standard Allen key without disassembling the valve body,simplifying field calibration and reducing maintenance downtime.

　　Spring-centered return mechanism:Each spool automatically returns to the neutral O-type position when the operator releases the lever.In the neutral position,all ports are blocked,locking actuators in place and preventing unintended movement—an essential safety feature for crane outriggers,stabilizers,and drill rig positioning systems.

　　Applications

　　Metallurgical industry hydraulic systems:The 350 bar pressure rating and robust monoblock construction withstand the high shock loads and continuous-duty cycles typical of steel mill equipment.Six independent sections allow simultaneous control of multiple hydraulic functions such as furnace tilting,ladle positioning,and roller table adjustments.

　　Marine hydraulic systems:The leak-free monoblock design eliminates external seepage that could contaminate deck surfaces or bilge areas.Saltwater-resistant G3/8″BSPP ports and the-25°C to+80°C operating temperature range ensure reliable performance in both engine rooms and exposed deck equipment across all marine environments.

　　Engineering equipment(mobile hydraulic applications):For truck-mounted cranes,the fine control grooves enable precise load lowering speed control,reducing swing and improving positioning accuracy.For aerial work platforms,the six independent sections can simultaneously manage boom extension,platform leveling,rotation,and outrigger deployment.

　　Drilling rig hydraulic systems:The O-type spool configuration locks all ports in neutral position,preventing unintended bit rotation or feed movement during drill pipe changes.Peak flow capacity of 50 L/min accommodates momentary flow surges common in percussion drilling operations.

　　Selection Guidance

　　Suitable for:Hydraulic systems requiring up to six independent actuator controls with a total system flow demand of 45 L/min or less,using open-center circuits with fixed-displacement pumps.

　　Suitable for:Applications where leak prevention between control sections is critical—including marine decks,food processing equipment,and mobile machinery operating in sensitive environments.The monoblock design eliminates inter-section sealing joints that could fail under vibration.

　　Suitable for:Manual-operated equipment where operators require direct tactile feedback for precise speed modulation,as the fine control grooves on the spools provide progressive flow control directly proportional to lever position.

　　Not recommended for:Systems requiring closed-center circuits(variable-displacement pressure-compensated pumps).The HC-M45 series is configured for open-center operation.For closed-center requirements,specify the closed-center modification kit or consider Hydrocontrol’s sectional valve series designed for closed-loop systems.

　　Not recommended for:Applications requiring flows consistently above 45 L/min per section.At sustained flows exceeding the nominal rating,pressure drop across the spool increases significantly,generating heat and reducing system efficiency.For higher flow requirements,consider the Hydrocontrol HC series with 60 L/min or 80 L/min flow ratings.

　　Not recommended for:Systems requiring electric or proportional control.This specific configuration is manual-only.For electric actuation(12V or 24V solenoids)or proportional control,specify alternative variants within the M45 series with the appropriate control type suffix.

　　FAQ

　　1.What type of hydraulic fluid and cleanliness level does this valve require?

　　Mineral oil-based hydraulic fluids with ISO VG 32 to VG 68 viscosity grades are recommended.To ensure spool operation and prevent premature wear from particle contamination,maintain fluid cleanliness at ISO 4406 Code 18/16/13 or better for standard service;for extended component life in high-cycle applications,target ISO 4406 Code 16/14/11.Fluid contamination is the primary cause of hydraulic valve failure,and the fine clearances(16 mm spool diameter)require controlled particulate levels below 14μm.

　　2.What is the maximum back pressure allowed on the return(T)port?

　　20 bar(290 psi)maximum back pressure on the T port.Exceeding this limit may prevent proper spool shifting and cause cavitation damage.Systems requiring higher return line pressure should install a separate tank return line or an auxiliary drain connection.

　　3.Can this valve operate in low-temperature outdoor environments?

　　Yes,down to-25°C with appropriate hydraulic fluid selection.For applications requiring consistent performance at low temperatures,select a hydraulic fluid with a sufficiently low pour point(ISO VG 32 winter-grade or synthetic fluid)and ensure the system includes a cold-start bypass to prevent pressure spikes until the fluid warms to operational viscosity.

　　4.How does the HC-M45 monoblock design compare to a stackable(sectional)valve from the same manufacturer?

　　The monoblock design offers fewer potential leak points(no seals between sections)and a more compact,lighter package,but provides less flexibility for field reconfiguration.Sectional valves allow adding,removing,or reordering sections after installation,while the HC-M45/6 requires replacing the entire valve body to change section count or spool types.For applications where future system modifications are anticipated,a sectional valve is the preferred choice.

　　5.What is the recommended maintenance interval for this valve?

　　Inspect the valve body and lever connections for visible external leakage at 500 operating hours or every three months,whichever comes first.Full functional testing of spool shifting effort and relief valve set-point accuracy is recommended at 2,000 operating hours or annually.Under standard operating conditions with properly filtered fluid(ISO 4406 18/16/13 or better),the valve typically operates for over 8,000 hours before requiring any component replacement.A 24-month manufacturer warranty is provided from the date of purchase.
