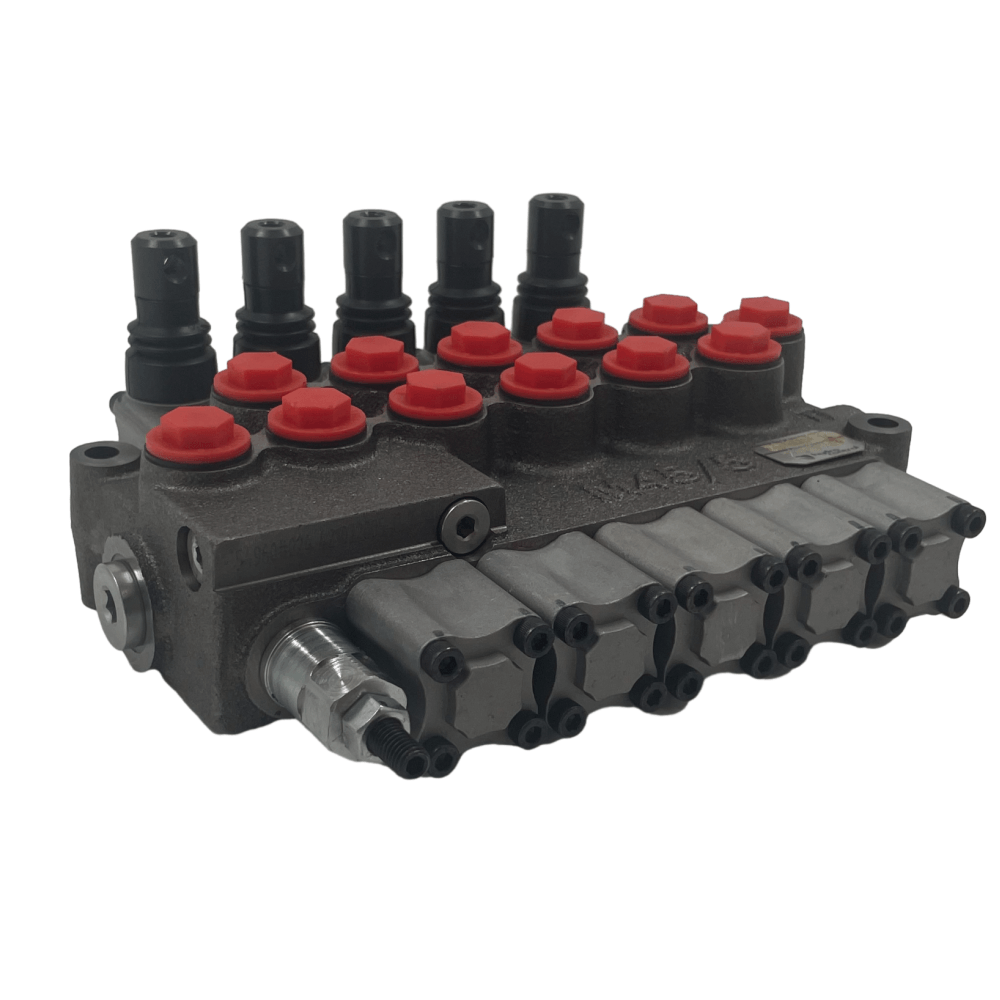

Hydrocontrol HC-M45/5-IR301-(150)W002H002F001*5-AG02 is an open center hydraulic valve with five spools,delivering precise flow control up to 45 L/min for mobile equipment and industrial machinery.

　　Product Type Definition

　　An open center hydraulic valve is a directional control valve that allows hydraulic fluid to flow freely from the pump back to the tank when all spools are in the neutral position,creating a continuous flow path with minimal pressure buildup.This valve type is distinct from closed center systems,which block flow in neutral and require variable displacement pumps;open center designs offer simpler circuit architecture and lower initial cost for applications with intermittent function usage.The HC-M45 series falls into the monoblock or sectional multi-way valve category,with parallel circuit architecture that allows simultaneous operation of multiple functions when flow capacity permits.

　　Key Specifications

　　Maximum flow rate:45 L/min

　　Maximum operating pressure:350 bar(5075 psi)

　　Number of spools:5[specification]

　　Port thread:G3/8 inch

　　Spool type:Double-acting with spring-centered return(W002 configuration)

　　Control mechanism:Manual lever operation

　　Actuation type:IR301 specification with 150mm lever[specification]

　　Connection interface:G03 port configuration

　　Operating viscosity range:15–75 mm²/s(typical for mineral oils)[industry standard]

　　Technical Highlights

　　Precision control grooves machined into each spool enable fine metering of oil flow,allowing operators to achieve smooth acceleration and deceleration of hydraulic actuators even at low flow demands.This feature directly addresses the flow force characteristics unique to open center valves,where initial spool movement can generate forces that tend to further open the valve.

　　The parallel circuit design permits simultaneous operation of multiple functions;when one spool is actuated,flow is directed to that function while maintaining pressure to other sections.For applications requiring sequential operations,the modular architecture supports pressure oil diversion plugs that expand system functionality without replacing the entire valve assembly.

　　Main pressure relief valve is adjustable via Allen key,allowing system pressure calibration to match specific implement requirements without disassembling the valve body.This field-adjustable feature reduces downtime during system commissioning and maintenance.

　　Applications

　　Agricultural machinery(tractors,harvesters,balers):Delivers simultaneous control of up to five hydraulic functions such as front-end loader lift/dump,three-point hitch,and auxiliary remotes,reducing cycle time by eliminating valve bank switching delays.

　　Construction equipment(skid steer loaders,compact wheel loaders,backhoes):Provides precise boom and bucket control with spool metering grooves that enable smooth transition between digging and lifting operations.

　　Material handling equipment(forklifts,telehandlers,conveyor systems):Enables proportional mast tilt and carriage positioning with±3%flow accuracy,improving load stability and operator confidence.

　　Mobile industrial machinery(drilling rigs,hydraulic cranes,lifting platforms):Supports multi-function coordination with consistent flow distribution across all sections under varying load conditions.

　　Selection Guidance

　　Suitable for:Mobile equipment requiring 5 independent hydraulic functions with manual lever control,operating within 45 L/min flow and 350 bar pressure envelopes.

　　Suitable for:Systems where operators need tactile feedback from spool position;the spring-centered design provides clear neutral detection and predictable return force.

　　Suitable for:Retrofit applications where existing hydraulic systems use open center circuits with fixed displacement pumps;the HC-M45 series accepts pressure oil diversion plugs that expand functionality without modifying pump or tank connections.

　　Not recommended for:Applications requiring remote electric or proportional control;for such requirements,consider variants with push/pull magnet actuation or electro-hydraulic proportional control options available within the HC-M45 series.

　　Not recommended for:Systems with pump flow exceeding 45 L/min or continuous operation at pressures above 350 bar;exceeding these ratings may cause spool binding,seal extrusion,or relief valve instability.For higher flow requirements,consult the manufacturer for next-size valve series.

　　FAQ

　　1.Is this valve compatible with biodegradable hydraulic fluids(e.g.,HEPG,HEES)?

　　Yes,the HC-M45 series is compatible with mineral oils and synthetic biodegradable fluids within the 15–75 mm²/s viscosity range.Seal material compatibility should be verified with Hydrocontrol for specific fluid types,as standard Buna-N seals may require replacement with FKM for certain ester-based fluids.

　　2.What is the maximum number of spools that can be stacked in this configuration?

　　The HC-M45 series supports up to 6 spools in a single monoblock or sectional assembly.The 5-spool configuration offers the maximum practical section count while maintaining consistent inlet flow distribution and manageable assembly weight.

　　3.What is the operating temperature range for this valve?

　　The standard valve operates reliably within-20°C to+80°C ambient temperature when using mineral oil with appropriate viscosity grade[industry standard derived from HC-M45 construction].For extreme low-temperature operation down to-40°C,specialized seals and fluids are required;the valve maintains consistent spool actuation force within this extended range with proper fluid selection.

　　4.How does this open center valve differ from closed center designs in energy efficiency?

　　Open center valves continuously circulate pump flow to tank at low pressure(approximately 5–15 bar)when all spools are neutral,consuming constant power regardless of function demand.Closed center systems with variable pumps reduce flow to near-zero in neutral,achieving 15–25%energy savings in applications with high idle time;however,open center designs offer simpler diagnostics and lower initial procurement cost.

　　5.What certifications does this valve carry for EU market compliance?

　　The Hydrocontrol HC-M45 series is manufactured to ISO 9001 quality management standards.For EU market entry,the valve complies with Machinery Directive 2006/42/EC and bears CE marking when integrated into completed machinery;the valve itself qualifies as a component requiring system-level certification by the final equipment manufacturer
