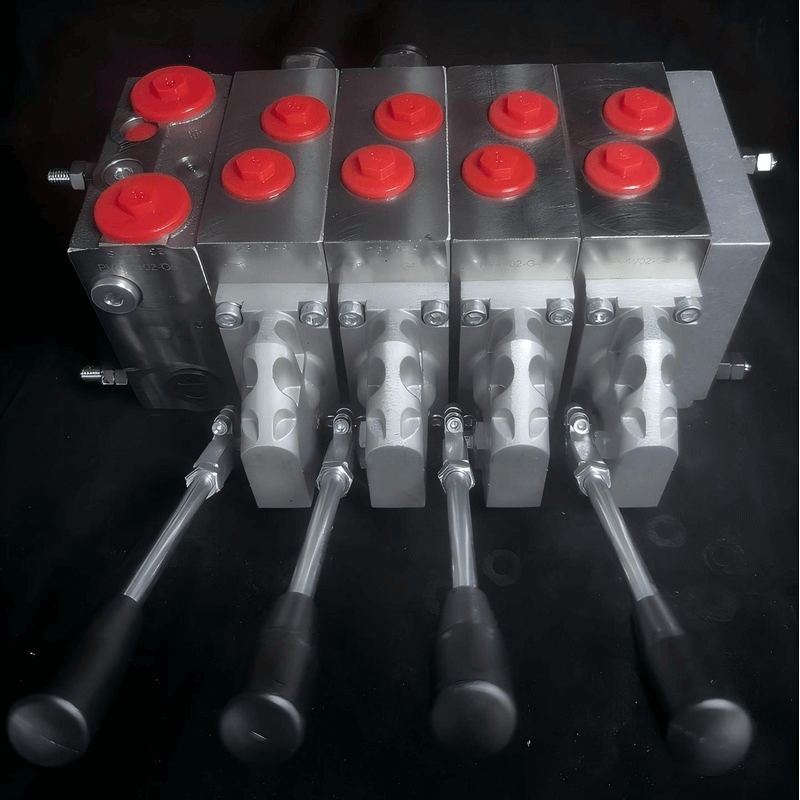

The YOULI YL-PV4/1S stands as a testament to the evolution of hydraulic control,moving beyond simple on/off functionality to provide precise,electrically modulated command over flow and pressure.As a direct-operated,4-way,single-solenoid proportional valve,it translates a varying input signal into a smoothly controllable spool displacement,thereby dictating the speed and force of hydraulic actuators with finesse.This model is engineered for applications where basic directional valves lack the necessary precision,and full-blown servo valves represent over-engineering and excessive cost.It finds its niche in industrial automation,mobile machinery,and process control,offering a compelling balance of performance,reliability,and value from the YOULI brand,a recognized manufacturer in the fluid power components market.

  1.Technical Deep Dive:Product Specifications and Operating Principle

  At its core,the YL-PV4/1S operates on the principle of proportional electromagnetics.Unlike a standard on/off solenoid that provides only two positions,its proportional solenoid generates a magnetic force that is directly proportional to the input current.This force acts against a spring,positioning the spool to a specific,corresponding opening.This allows for infinite positioning between the fully closed and fully open states,enabling precise metering of hydraulic fluid.

  1.1 Key Technical Data

  Specification

  Model YL-PV4/1S

  Valve Type Direct-operated 4-way,3-position proportional directional valve

  Actuation Single proportional solenoid with integrated electronics(typically)

  Standard Centering Spring-centered(for 3-position)

  Nominal Flow Rate e.g.,20 L/min(Subject to confirmation with manufacturer's datasheet)

  Maximum Operating Pressure e.g.,350 bar(Subject to confirmation with manufacturer's datasheet)

  Required Signal 0-10 VDC or 4-20 mA(for proportional control)

  Hysteresis<3%(Industry typical for this class)

  Repeatability<1%(Industry typical for this class)

  1.2 Critical Components and Features

  Proportional Solenoid&On-Board Electronics(OBE):The heart of the valve.The solenoid is designed for linear force output,while the integrated OBE,often a printed circuit board(PCB),is crucial.It amplifies the low-power command signal from the PLC or controller and provides dither—a high-frequency signal superposition that reduces friction and ensures smooth spool movement,minimizing stick-slip and improving control resolution.

  Spool and Sleeve Assembly:The precision-matched spool and sleeve are lapped to extremely fine tolerances.The spool's metering notches are carefully profiled to achieve the desired flow characteristics,which can be linear,parabolic,or other custom shapes to match the application's requirements for fine control at low flows or high speed at high flows.

  Spring-Center Mechanism:In its de-energized state,the spring return mechanism safely moves the spool to the central position(A and B ports blocked,P to T,for example),providing a defined fail-safe condition for the system.

  2.Performance and Application Advantages

  The YL-PV4/1S provides tangible benefits that elevate system performance beyond what is possible with standard valves.

  Enhanced Process Control and Quality:By enabling precise control over actuator velocity and force,this valve allows for smoother acceleration and deceleration profiles.This translates to reduced shock in the system,less wear on mechanical components,higher product quality in manufacturing processes like pressing or injection molding,and improved operational smoothness in mobile equipment.

  System Simplification and Energy Efficiency:Replacing complex banks of fixed flow controls and multiple on/off valves with a single proportional valve simplifies the hydraulic circuit,reduces potential leak points,and lowers assembly costs.Furthermore,by matching the actuator speed exactly to the requirement,it avoids the energy losses associated with throttling across fixed orifices or dumping excess flow over relief valves,leading to lower operating costs and heat generation.

  Flexibility and Programmability:Since the valve's output is governed by an electrical signal,its behavior can be easily modified through the system's controller without any physical changes to the hydraulic system.This allows for quick machine changeovers,adaptive control strategies,and the implementation of complex motion sequences that would be impractical with discrete valves.

  Expanded Perspective:The Role and Selection of Proportional Valves in Hydraulics

  Understanding where proportional valves fit in the broader spectrum of hydraulic control technology is key to making an informed component selection.

  1.The Control Valve Spectrum:On/Off vs.Proportional vs.Servo

  A clear understanding of the available technologies prevents both under-and over-engineering.

  Standard On/Off Valves(Directional Valves):These are digital in nature—fully open or fully closed.They are cost-effective and perfectly suitable for applications requiring only position control(e.g.,cylinder extended or retracted)without any need for speed regulation.

  Proportional Valves:As exemplified by the YL-PV4/1S,these are the"analog"solution.They offer infinite positioning between limits,providing control over speed,force,and position(with feedback).Their primary advantage is balancing performance with cost and contamination tolerance.They are more robust to typical industrial oil cleanliness levels(e.g.,ISO 19/17)than servo valves.

  Servo Valves:These are high-performance devices,typically using a flapper-nozzle or jet pipe pilot stage for extremely fast and precise spool positioning.They offer the highest frequency response and accuracy but at a significantly higher cost,require ultra-clean oil(ISO 16/14 or better),and are more sensitive to contamination.They are reserved for dynamic applications like flight simulators,high-end test rigs,or continuous-process control in steel mills.

  Making the Choice:

  Choose an On/Off Valve for simple,cost-sensitive positional control.

  Choose a Proportional Valve(like the YL-PV4/1S)when you need smooth,variable control of speed or force,and when programmability and energy efficiency are desired without the extreme cost and maintenance demands of a servo system.

  Choose a Servo Valve only for the most demanding,high-frequency,closed-loop applications where the highest levels of precision and speed are non-negotiable.

  2.Critical Considerations for Implementation

  Successfully integrating a proportional valve involves more than just plumbing it in.

  The Imperative of Filtration:The fine radial clearances in proportional valves(typically 1-4µm)make them susceptible to damage from solid contaminants.A pressure filter with a nominal rating of 10µm or,preferably,3µm,is considered mandatory to ensure reliability and long service life.

  Electronics and Control:The valve requires a compatible proportional amplifier.While many modern proportional valves come with onboard electronics(OBE)that simplify wiring,they still require a command signal from a programmable logic controller(PLC)or a dedicated motion controller.For precise position control,external feedback devices like transducers or encoders are needed to close the loop.

  Parameterization:Modern proportional systems allow for the software-based setting of parameters like ramp times,gain,and deadband compensation.This fine-tuning is essential for optimizing the dynamic response of the system and eliminating instability or oscillations.

  Frequently Asked Questions(FAQs)

  1.What is the key functional difference between a standard directional valve and this proportional valve?

  A standard valve acts like a simple switch,offering only full flow or no flow,resulting in abrupt actuator movement.The YL-PV4/1S proportional valve functions like a dimmer switch,providing infinitely variable control over the flow rate.This allows for smooth,controlled acceleration and deceleration of cylinders and motors,enabling precise speed regulation and reduced system shock.

  2.Is this valve suitable for closed-loop position control?

  Yes,but it requires additional components.The YL-PV4/1S can be used in a closed-loop system where an external position sensor(e.g.,a linear transducer)provides feedback to the controller.The controller then compares the actual position to the target and continuously adjusts the command signal to the valve to minimize the error,achieving precise positioning.

  3.Why is excellent filtration so critical for proportional valves?

  The operational clearances between the spool and sleeve in a proportional valve are extremely small(a few micrometers).Particles only slightly smaller than this gap can cause abrasive wear,increasing internal leakage and degrading performance.Larger particles can jam the spool entirely,leading to valve failure.High-pressure filtration is a cheap insurance policy for the valve's longevity.

  4.Can I use a standard PLC output to control this valve directly?

  No,you cannot.Standard PLC digital or analog outputs provide a low-power command signal(e.g.,0-10V).The proportional solenoid requires a high-power current signal to operate.This is why a proportional amplifier is essential—it acts as a powerful intermediary that translates the PLC's weak command into the strong,current-driven signal needed to position the spool accurately.

  5.What does"hysteresis"mean in the context of this valve?

  Hysteresis is a measure of the valve's deadband or the lag in its response when the input signal changes direction.For example,if the spool position at a 5V signal is different when approaching from 0V versus approaching from 10V,that difference is hysteresis.A low hysteresis value(<3%)indicates a high-quality valve that responds consistently and predictably,which is vital for precise and repeatable control.
