1 Product Overview and Core Technology

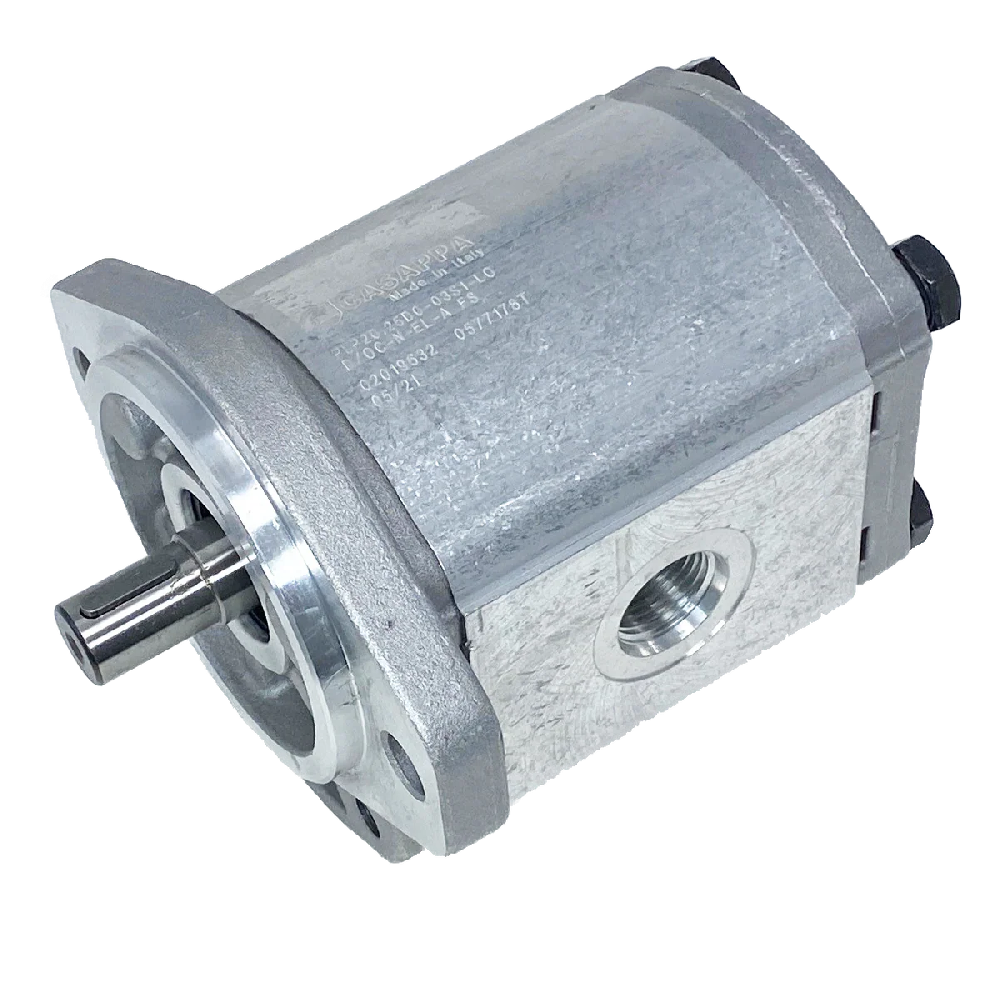

　　The Casappa PLP20.25S0-31S1-LGE/GD-N-EL is a high-performance Mobile Hydraulic Gear Pump engineered for reliability and efficiency in challenging environments.This model belongs to Casappa's esteemed PLP series,which is renowned for its robust three-piece construction utilizing high-resistance aluminum alloy.As an External Gear Pump,it operates on the fundamental principle of two meshing gears—a driven gear and an idler gear—rotating within a precisely machined housing.This rotation creates a vacuum at the inlet port,drawing hydraulic fluid into the pump.The fluid is then carried between the gear teeth and the pump housing to the outlet port,where the meshing of the gears forces the fluid out,generating flow and pressure.This simple yet effective design makes the External Gear Pump a cornerstone of hydraulic systems,prized for its durability and consistent performance.

　　The pump is designed to meet international standards,including SAE,DIN,and European specifications,ensuring broad compatibility and ease of integration into various hydraulic systems.Its design is particularly suited for mobile hydraulic applications,where equipment faces variable loads,harsh environmental conditions,and demands for dependable power.The"Mobile"designation highlights its optimization for use in vehicles and machinery such as construction equipment,agricultural machinery,and material handling systems,where its compactness and power density are critical advantages.

　　2 Technical Specifications and Performance Characteristics

　　The Casappa PLP20.25S0-31S1-LGE/GD-N-EL is built to deliver substantial hydraulic power.It features a displacement of 20 cm³/rev(approximately 1.22 in³/rev),making it capable of handling significant flow requirements in a compact package.The pump is engineered to withstand demanding operating conditions,with the capability for peak pressures up to 4350 psi(300 bar).This high-pressure rating makes it suitable for powering heavy-duty hydraulic functions.

　　This External Gear Pump can achieve a maximum speed of 4000 rpm,allowing for flexible integration with various power sources and enabling high-flow operations when needed.The pump is designed with an integrated external bearing,a feature specifically intended for heavy-duty applications.This robust bearing construction enhances the pump's ability to handle substantial radial loads,contributing to an extended service life and reliable operation under continuous use.The specific configuration code"LGE/GD-N-EL"in the model number typically refers to its porting options,rotation direction,and shaft type,indicating a design tailored for specific mounting and connection requirements.

　　3 Design Features and Construction Details

　　3.1 Robust Material Selection and Construction

　　The durability of this Mobile Hydraulic Gear Pump stems from its strategic material selection and construction.The pump body is a high-strength aluminum alloy extrusion,offering an excellent balance of lightness and structural integrity.This three-piece design not only provides robustness but also facilitates serviceability.Critical internal components,such as the gears and shafts,are manufactured from hardened steels to resist wear and endure the high cyclic pressures encountered in mobile hydraulic systems.This focus on material quality ensures the pump can maintain performance over a long operational lifespan,even in abrasive or contaminated fluid conditions.

　　3.2 Optimized for Mobile Applications

　　The design philosophy of the PLP series centers on meeting the rigorous demands of mobile machinery.The compact form factor of the pump allows for efficient use of space in crowded equipment engine compartments.Furthermore,the design prioritizes high volumetric efficiency,which translates to more effective use of input power,reduced energy loss,and less heat generation.This efficiency is crucial in mobile applications where fuel economy and system cooling are persistent concerns.The pump's ability to handle high speeds and pressures directly contributes to the productivity and responsiveness of the machinery it powers.

　　4 Primary Application Areas and Industry Solutions

　　The Casappa PLP20.25S0-31S1-LGE/GD-N-EL finds its prime application in sectors where reliable hydraulic power is non-negotiable.In the construction industry,it is an ideal power source for equipment like small excavators,skid-steer loaders,and concrete pumps,providing the necessary force for digging,lifting,and material placement.Its robustness ensures it can withstand the shock loads and continuous cycling typical in these environments.

　　In agricultural machinery,such as tractors,combines,and balers,this External Gear Pump delivers power for tasks like steering,implement lifting,and running auxiliary functions.Its contamination tolerance,a characteristic of gear pump design,is a valuable asset in the dusty and demanding conditions of farm operations.Beyond these,the pump is also well-suited for material handling equipment,including forklifts,aerial work platforms,and log splitters,where its reliable performance ensures safe and efficient operation.

　　5 Operational Advantages and Economic Benefits

　　5.1 Simplified System Integration and High Reliability

　　The External Gear Pump design,exemplified by this Casappa model,offers significant advantages in system design and maintenance.Its straightforward architecture leads to a compact and cost-effective solution compared to more complex pump types.The simplicity of the design also translates to easier troubleshooting and maintenance,reducing potential downtime.For OEMs and system integrators,the standardized mounting and porting options simplify the machine design process,while the pump's proven reliability contributes to lower lifecycle costs and higher machine availability.

　　5.2 Cost-Effectiveness and Contamination Resistance

　　One of the most celebrated features of gear pumps in general is their relative insensitivity to fluid contamination compared to other pump types like piston or vane pumps.While maintaining a clean hydraulic system with proper filtration is always critical,the robust clearances in a gear pump make it more forgiving,which is a major economic benefit in real-world mobile applications where perfect cleanliness is difficult to maintain.This characteristic,combined with the pump's overall durability and competitive initial cost,results in a compelling total cost of ownership,making it an economically wise choice for a wide range of mobile hydraulic systems.

　　Frequently Asked Questions(FAQs)

　　1.What are the key advantages of an external gear pump design in mobile hydraulics?

　　The External Gear Pump design offers several key advantages for mobile applications.Its primary strengths are simplicity,robustness,and cost-effectiveness.The design has fewer moving parts compared to other pump types,leading to high reliability and easier maintenance in the field.Furthermore,external gear pumps are generally more tolerant of fluid contamination,which is a common challenge in the harsh operating environments of construction and agricultural machinery.Their compact size and high power density also make them ideal for space-constrained mobile equipment.

　　2.How does the three-piece construction of this Casappa pump benefit its performance and service life?

　　The three-piece construction,utilizing a high-strength aluminum alloy body,provides exceptional structural integrity.This robust design helps the pump maintain internal alignment and tolerances under high pressure and variable loads,which is crucial for consistent performance and longevity.Furthermore,this construction can facilitate servicing,as it may allow for the replacement of individual sections or components rather than the entire pump unit,potentially reducing maintenance costs and downtime over the pump's operational life.

　　3.What types of control systems is this pump compatible with?

　　As a fixed-displacement gear pump,the Casappa PLP20.25S0-31S1-LGE/GD-N-EL delivers a flow rate that is directly proportional to its shaft speed.To control the speed and force of hydraulic actuators in a system,this pump is typically used in conjunction with external control valves.These can include directional control valves to direct flow,pressure relief valves to limit system pressure,and flow control valves to regulate actuator speed.The pump itself provides a constant flow source,with system control being managed by the valve manifold.

　　4.What maintenance practices are crucial for maximizing the service life of this mobile hydraulic gear pump?

　　The most critical maintenance practice is ensuring the hydraulic fluid is kept clean and within the specified viscosity and temperature ranges.Regularly monitoring and replacing hydraulic filters is paramount,as contamination is a leading cause of wear in all hydraulic components,including robust gear pumps.Additionally,checking for unusual noise,elevated operating temperatures,or external leaks can help identify potential issues early.Ensuring that the pump's shaft seal is in good condition and that the drive coupling is properly aligned will also prevent premature failures and extend the pump's service life.

　　5.Can this pump be used in applications other than mobile machinery?

　　While designated as a Mobile Hydraulic Gear Pump and optimized for the dynamic demands of vehicles,its fundamental capabilities make it suitable for a wide range of industrial applications.It can be effectively used in stationary equipment such as industrial presses,machine tools,and lubrication systems,provided that its pressure and flow specifications meet the application's requirements.The pump's reliability and contamination tolerance are valuable assets in any industrial setting.
