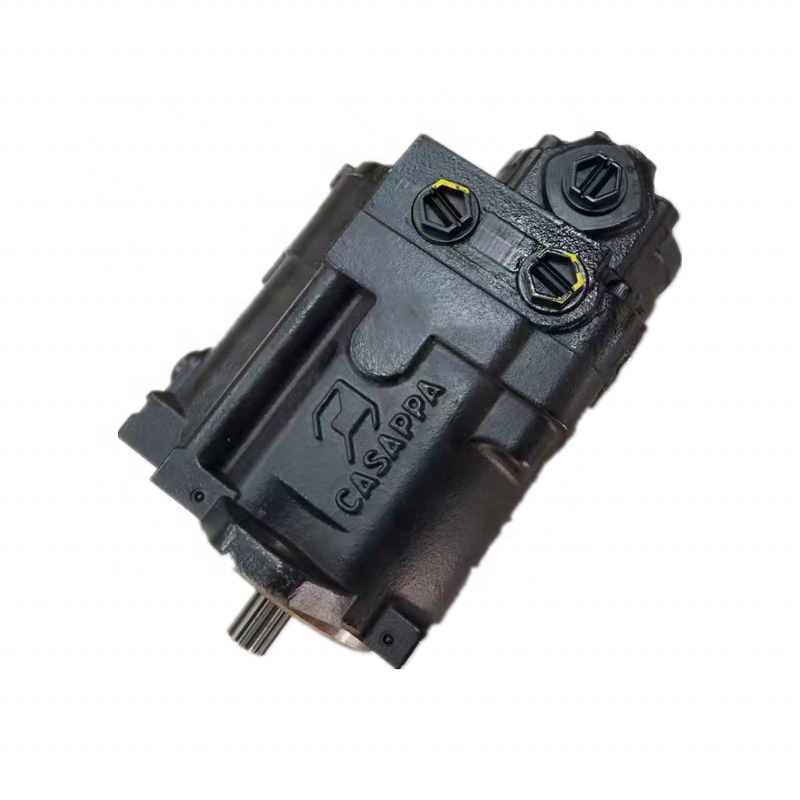

The Casappa DVP14,5-04S5-LMD/GD-GD/KP20.11,2-LGD/GD is a high-performance External Gear Pump that exemplifies compact design and reliable power delivery in hydraulic systems.This Compact Hydraulic Pump combines robust construction with advanced engineering to meet the demands of diverse industrial applications,including mobile machinery,agricultural equipment,and material handling systems.As an External Gear Pump,it operates on the principle of two meshing gears rotating within a tightly toleranced housing to displace fluid efficiently.Its modular design allows for flexible integration into multi-pump configurations,providing exceptional versatility for complex hydraulic circuits.With a focus on durability,energy efficiency,and low noise emissions,this pump series reflects Casappa's decades of expertise in developing precision hydraulic components for global markets.This article delves into the technical specifications,operational benefits,and practical applications of this pump,offering insights into its role in enhancing system performance and productivity.

　　1 Product Overview and Technical Specifications

　　The Casappa DVP14,5-04S5-LMD/GD-GD/KP20.11,2-LGD/GD is part of Casappa's broad portfolio of External Gear Pump solutions,designed to deliver consistent fluid transfer in open-circuit hydraulic systems.This model features a displacement of 14.5 cm³/rev for the primary pump section and 11.2 cm³/rev for the secondary section,enabling it to handle multiple functions within a single unit.Its design incorporates high-resistance aluminum alloy for the pump body,ensuring lightweight yet durable performance under high-pressure conditions.The pump operates at peak pressures up to 300 bar(4350 psi)and speeds reaching 4000 rpm,making it suitable for high-output applications without compromising compactness.The Compact Hydraulic Pump design includes standardized mounting options compliant with SAE,DIN,and European standards,simplifying installation and integration into existing systems.Key technical aspects include optimized port configurations,hardened steel gears for wear resistance,and precision-machined components to minimize internal leakage and maximize volumetric efficiency.Additionally,the pump supports custom configurations,such as integrated valves for pressure relief or load sensing,providing tailored solutions for specific operational requirements.

　　2 Operational Principles and Design Advantages

　　2.1 How the External Gear Pump Functions

　　The External Gear Pump operates on a straightforward yet highly effective principle:two identical gears—a driven gear and an idler—mesh within a sealed housing.As the gears rotate,fluid is trapped between the gear teeth and the pump housing,moving from the inlet to the outlet side.The meshing of the gears at the outlet side creates a positive displacement action,forcing fluid out under pressure.This design ensures a steady,pulsation-reduced flow,which is critical for applications requiring smooth hydraulic actuation.The Casappa pump enhances this basic principle with specialized gear profiles and housing geometries to reduce turbulence and cavitation,resulting in higher efficiency and longer service life.The simplicity of the External Gear Pump mechanism contributes to its reliability and ease of maintenance,as it involves fewer moving parts compared to alternative pump types like piston or vane pumps.

　　2.2 Key Design Advantages for Industrial Use

　　The Compact Hydraulic Pump design of the Casappa DVP14,5 series offers multiple advantages that cater to the evolving needs of modern hydraulic systems.One of the most significant benefits is its space-saving profile,which allows for installation in tightly confined areas without sacrificing performance.This is achieved through a three-piece construction—comprising a pump body and two covers—that provides superior structural integrity and heat dissipation.The pump also incorporates integrated external bearings,which enhance its ability to handle heavy radial loads,common in applications like construction machinery and agricultural implements.Additionally,the pump's low-noise operation,achieved through precision gear machining and optimized fluid dynamics,makes it ideal for environments where noise reduction is a priority.The use of advanced materials,such as aluminum alloy for the body and hardened steel for the gears,ensures resistance to wear and corrosion,even when operating with contaminated fluids.These design features collectively contribute to reduced downtime,lower operating costs,and extended component lifespan.

　　3 Performance Characteristics and Application Scenarios

　　The Casappa DVP14,5-04S5-LMD/GD-GD/KP20.11,2-LGD/GD delivers exceptional performance metrics that make it a versatile choice across various sectors.Its volumetric efficiency exceeds 90%in many operating conditions,thanks to tight internal clearances and optimized gear design.This high efficiency translates to lower energy consumption,as less power is wasted on fluid leakage or heat generation.The pump's pressure range,with a maximum operating pressure of 300 bar,allows it to handle high-load tasks such as lifting,pressing,and clamping in industrial machinery.Furthermore,its compatibility with a wide range of hydraulic fluids,including biodegradable and synthetic oils,ensures adaptability to environmental regulations and operational preferences.The Compact Hydraulic Pump also exhibits excellent suction characteristics,minimizing the risk of cavitation even at high speeds or low inlet pressures.

　　In terms of applications,this External Gear Pump is widely used in mobile hydraulics,including forklifts,telescopic handlers,and skid-steer loaders,where space constraints and reliability are critical.In the agricultural sector,it powers tractors,harvesters,and irrigation systems,providing consistent performance in dusty or variable weather conditions.Industrial applications extend to conveyor systems,machine tools,and plastic injection molding machines,where its precise flow control and durability support continuous operation.The pump's modularity also enables it to be combined with other hydraulic components,such as motors or valves,to create customized circuits for specialized tasks like synchronized movement or pressure compounding.

　　4 Comparative Analysis with Other Pump Technologies

　　When compared to other hydraulic pump types,the External Gear Pump stands out for its balance of cost,performance,and simplicity.For instance,piston pumps,while offering higher pressure capabilities and variable displacement,are generally more complex,expensive,and sensitive to fluid contamination.In contrast,the Casappa DVP14,5 series provides a cost-effective solution for applications where moderate to high pressure and fixed displacement are sufficient.Similarly,vane pumps,though quieter and capable of handling higher speeds,may not match the durability and contamination tolerance of gear pumps in harsh environments.The Compact Hydraulic Pump design further amplifies these advantages by reducing the footprint and weight,which is particularly beneficial in mobile applications where every kilogram and centimeter matters.

　　Another key differentiator is the maintenance requirements.Gear pumps like the Casappa DVP14,5 are easier to service and repair due to their modular construction and standardized components.This contrasts with more integrated pump designs,where a single faulty component might necessitate a full unit replacement.The availability of built-in valve options,such as anti-cavitation or pressure relief valves,also reduces the need for external accessories,simplifying the overall system layout and cutting installation costs.

　　5 Installation Guidelines and Maintenance Practices

　　Proper installation is crucial for maximizing the performance and lifespan of the Casappa DVP14,5 External Gear Pump.The pump should be mounted securely using appropriate brackets and fasteners to minimize vibration and misalignment,which can lead to premature wear.Ensuring that the shaft alignment between the pump and the prime mover(e.g.,an electric motor or engine)is within specified tolerances prevents excessive radial loads on the bearings.The hydraulic circuit should include adequate filtration—typically 10 micrometers or finer—to protect the pump from particulate contamination,a common cause of gear and housing wear.Additionally,the pump must be primed before initial startup to avoid dry running,which can damage the seals and gears within seconds.

　　Routine maintenance focuses on monitoring operational parameters and addressing potential issues proactively.Regularly checking the fluid temperature,pressure,and noise levels can help identify problems like internal leakage or cavitation early.The pump's external bearings,though designed for heavy-duty use,should be inspected periodically for lubrication and signs of wear.If the pump is used in a multi-pump configuration,ensuring that the common inlet passage is free of restrictions is essential to maintain balanced flow across all units.Casappa provides detailed service manuals and troubleshooting guides to assist with maintenance tasks,reducing downtime and extending the pump's operational life.

　　6 Frequently Asked Questions(FAQs)

　　What distinguishes an External Gear Pump from other hydraulic pump types?

　　An External Gear Pump is characterized by its use of two meshing gears to move fluid from the inlet to the outlet.This design is simpler and more cost-effective than piston or vane pumps,making it ideal for applications requiring reliable,medium-to-high pressure performance.Unlike piston pumps,which excel in variable displacement and ultra-high pressure,gear pumps offer fixed displacement with greater contamination resistance and easier maintenance.Their compactness and robustness make them suitable for mobile and industrial equipment where space and durability are priorities.

　　How does the compact design of this pump benefit complex hydraulic systems?

　　The Compact Hydraulic Pump design allows for significant space savings in hydraulic systems,enabling engineers to design more streamlined equipment without compromising power output.Its modular construction supports multi-pump configurations,where multiple sections can be combined to power different functions from a single drive source.This reduces the overall number of components,simplifies piping,and lowers installation costs.Additionally,the pump's lightweight construction contributes to improved fuel efficiency in mobile applications,while its standardized mounting options ensure compatibility with existing hardware.

　　What maintenance practices are critical for ensuring long-term reliability?

　　Regular maintenance is essential for maximizing the service life of an External Gear Pump.Key practices include monitoring hydraulic fluid cleanliness through periodic filter changes,as contaminants are a leading cause of pump wear.Inspecting the pump for external leaks,unusual noises,or temperature spikes can help detect issues early.Ensuring proper shaft alignment and avoiding cavitation by maintaining adequate inlet pressure are also crucial.Following the manufacturer's recommended service intervals for bearing lubrication and seal replacement further enhances reliability.

　　Can this pump be used in environmentally sensitive applications?

　　Yes,the Casappa DVP14,5 series is compatible with environmentally friendly hydraulic fluids,such as biodegradable oils,making it suitable for use in sectors like agriculture and forestry where fluid leakage could impact ecosystems.Its high efficiency also reduces energy consumption,indirectly lowering the carbon footprint of the equipment it powers.However,users should verify fluid compatibility with Casappa's guidelines to ensure optimal performance and material suitability.

　　What are the typical operational limits in terms of speed and pressure?

　　This pump is designed to operate at speeds up to 4000 rpm and pressures up to 300 bar(4350 psi)intermittently,with continuous operation recommended at slightly lower values to ensure longevity.Exceeding these limits can lead to increased wear,overheating,or catastrophic failure.The pump's performance window is engineered to balance output and durability,and it should be paired with a drive source that matches its torque and speed characteristics to avoid overloading.
