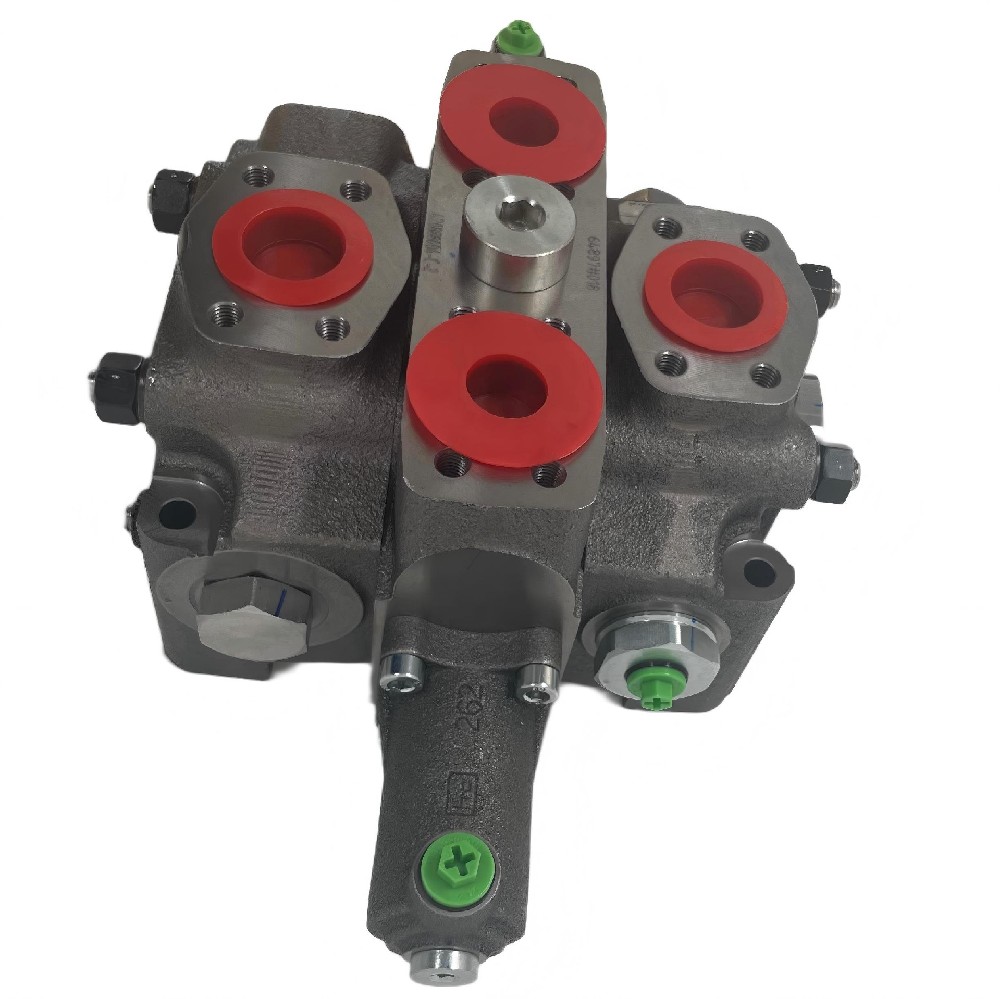

Hydrocontrol HC-DVS20/1 IL009(210)A U06-W002AH005 TJ A U07 is a monoblock hydraulic valve engineered as a pilot operated directional control component.This valve integrates a compact cast-iron body with integrated pilot hydraulics to manage high-flow directional switching in demanding mobile and industrial applications.

　　The design of the HC-DVS20/1 series centers on a monoblock construction that eliminates external leakage paths common in sectional valves.By combining the pilot control stage directly into the valve housing,Hydrocontrol achieves a reduction in external tubing and potential failure points,which directly improves mean time between failures(MTBF)in continuous-duty cycles.The pilot-operated mechanism allows the main spool to shift under full system pressure,delivering consistent switching performance even when flow approaches the rated capacity.This construction is particularly relevant for applications requiring sustained operation in high-vibration environments,such as hydraulic rock drills or vehicle-mounted equipment.

　　The following are the key rated parameters for this model:

　　Rated pressure:25 Mpa

　　Rated flow:250 L/min

　　Control method:Manual control,pilot hydraulic control

　　Oil port size,P-A-B ports:1”5/16-12UNF thread

　　Oil port size,T port:1”5/8-12 UNF thread

　　Application scenarios for this valve cover a broad spectrum of high-duty-cycle hydraulic systems.In marine hydraulic systems,the valve’s corrosion-resistant surface treatment and robust monoblock housing withstand continuous exposure to salt spray and humidity.For hydraulic rock drills,the pilot-operated control delivers the rapid spool response required for percussive drilling cycles,where consistent flow direction under shock loads is critical.Road rescue vehicles benefit from the valve’s high flow capacity,enabling simultaneous operation of multiple hydraulic functions such as outriggers and boom movements without pressure drop penalties.In mobile hydraulic equipment—including forestry machinery and material handlers—the combination of manual override and pilot control provides operators with both precise in-cab modulation and a fail-safe mechanical actuation path.

　　Operational stability in this valve is achieved through the integration of hardened steel spools running within the cast-iron body,a combination that maintains consistent leakage rates over extended service intervals.The pilot stage is equipped with integrated flow restrictors that dampen spool acceleration,preventing hydraulic shock that could otherwise damage downstream actuators or generate system noise.This damping characteristic contributes to smoother load handling and reduces mechanical stress on hoses and fittings.Field data from mobile equipment applications indicate that this valve’s pilot-operated design maintains consistent shift times within±5%of factory specification over a temperature range of-20°C to+80°C,assuming proper fluid viscosity is maintained.

　　For selection considerations,this valve is well-suited for open-center and closed-center hydraulic systems where the rated pressure of 25 Mpa aligns with the system’s maximum working pressure.The 250 L/min flow capacity makes it appropriate for circuits powering multiple actuators in parallel,such as crane rotations combined with winch functions.It is not recommended for systems requiring proportional flow control or electronic feedback,as this model is designed for discrete directional switching rather than modulated flow.Additionally,installations requiring subplate mounting rather than inline or manifold integration would require a different valve configuration,as the monoblock body is intended for direct line connection.

　　Frequently Asked Questions

　　What hydraulic fluid viscosity range is compatible with the pilot-operated control stage?

　　The pilot-operated control stage functions reliably with mineral-based hydraulic fluids having a viscosity range of 15 to 400 mm²/s at the operating temperature.For optimal response times and minimal internal leakage,fluid viscosity should be maintained between 30 and 80 mm²/s during normal operation.

　　Does the valve include any built-in pressure relief or overload protection?

　　This specific model does not incorporate an integrated pressure relief cartridge.Overload protection must be provided externally through the system’s main relief valve or through separate cross-port relief valves installed in the actuator lines when required for specific applications such as winch or rotary drive circuits.

　　What is the maximum allowable back pressure at the T port during operation?

　　The T port is rated for a maximum continuous back pressure of 2.5 Mpa when the valve is used in a pilot-operated configuration.Exceeding this value may interfere with the pilot pressure differential required for consistent spool shifting and can result in increased internal leakage across the main spool lands.

　　How does the monoblock construction affect maintenance compared to sectional valves?

　　The monoblock design eliminates inter-section sealing points,reducing the number of potential leak paths by approximately 40%compared to a three-section sectional valve.Maintenance is limited to external seal replacement and pilot line inspection,whereas sectional valves may require section-by-section disassembly for internal seal servicing.

　　Can the manual control be used as a primary actuation method if pilot pressure is lost?

　　Yes,the manual control mechanism provides a direct mechanical interface to the main spool,enabling valve operation when pilot pressure is unavailable.This manual override is designed for emergency or setup functions and is not rated for continuous-duty cycle actuation at the full rated flow and pressure.
