In the world of mobile hydraulics,the complexity of a machine often distracts from a fundamental truth:even the most sophisticated systems are built upon reliable,singular functions.While multi-section banks are necessary for complex operations like boom articulation,there is a persistent demand for a dedicated,compact,and powerful unit to handle a single auxiliary task.Whether it is operating a winch brake on a recovery vehicle,controlling a stabilizer leg,or managing a specific conveyor function,the need for a robust,standalone 1 spool hydraulic control valve is constant.

　　Engineers and maintenance professionals often face the challenge of integrating a single-function circuit into an existing system without the bulk or complexity of a full sectional stack.This is where the Walvoil SDS180/1 carves out its niche.Part of the renowned SDS180 family,this single-section configuration offers the legendary durability of the Walvoil line in a form factor designed for simplicity and high-pressure performance.It is not merely a valve;it is a precision tool for operators who demand absolute control over a critical hydraulic function in demanding environments,from marine decks to dusty mining sites.

　　The Philosophy of the Single Section:Design and Positioning

　　When we discuss hydraulic control,the natural instinct is to think in terms of multiplicity—multiple functions,multiple levers,and multiple actuators.However,the Walvoil SDS180/1 stands as a testament to the fact that doing one thing exceptionally well is a hallmark of quality engineering.This unit is a single-section version of the larger SDS180 series,a family known for its high-flow capabilities(up to 160 L/min)and robust construction for heavy-duty mobile equipment.

　　By isolating a single spool within the SDS180 housing,Walvoil has created a valve that is ideal for original equipment manufacturers(OEMs)and retrofit applications requiring a dedicated circuit.Unlike its multi-section siblings(such as the SDS180/2 or SDS180/3),this variant is not about simultaneous multi-function control.Instead,it focuses on providing an extremely robust,high-flow passage for a single actuator.

　　This design philosophy directly impacts system architecture.It allows designers to mount the control exactly where it is needed—perhaps directly on a subframe near the actuator—minimizing hose runs and reducing pressure drops.The SDS180/1 is the architectural"column"of a hydraulic system:it stands alone,bears immense load,and provides the structural integrity for the specific task it is assigned to.

　　Technical Capabilities:An Engineering Interpretation of Parameters

　　To appreciate the Walvoil SDS180/1,one must look beyond the numbers and understand what these specifications mean for a machine operating under duress.The engineering choices made in this valve directly translate to uptime,safety,and efficiency.

　　High-Pressure Integrity for Heavy Loads

　　The valve is rated for a nominal pressure of 31.5 MPa(315 bar/~4600 psi).In practical terms,this isn't just a number pulled from a catalog;it represents the valve's ability to withstand the pressure spikes common in impactive loads.Consider a hydraulic rock drill or a demolition shear:when the tool bites into material,pressure surges are instantaneous.The SDS180/1’s ductile iron housing and precision-machined spool are engineered to contain these shocks without deformation or failure,ensuring that the burst pressure margin remains safely above the working limits.This high-pressure rating ensures that the valve body acts as a pressure vessel,not a weak link.

　　Flow Capacity and Metering Control

　　With a nominal flow rate of 150 liters per minute,this valve sits firmly in the medium-to-high flow category.But flow is not just about volume;it is about control.The SDS180 series utilizes a specific"Y"type free-flow gallery design.This internal geometry is critical.It minimizes turbulence as oil passes through the valve body when the spool is shifted.

　　For the operator,this means precise metering.When feathering a control to slowly extend a stabilizer leg or gradually engage a winch,the spool's metering notches interact with the high-flow gallery to provide smooth,progressive actuation.Without this careful design,a high-flow valve can feel"jumpy"or"on/off."The 150 L/min capability ensures that even large-bore cylinders and high-speed motors can be controlled with finesse,avoiding jerky movements that can destabilize a vehicle or damage a load.

　　Port Sizing for Real-World Plumbing

　　Hydraulic systems live and die by their connections.The SDS180/1 features P and A/B ports with G3/4”BSP threads,while the T(tank)port is a larger G1”BSP.

　　G3/4 on P and A/B:This is a practical choice for 150 L/min flow.It allows for the use of standard,readily available fittings and hoses that can handle the velocity and pressure without excessive line losses.

　　G1”on T:The larger tank port is a deliberate engineering decision to ensure low backpressure.When the spool shifts,the oil returning from the actuator needs a clear,low-resistance path to the reservoir.A larger T-port minimizes counter-pressure on the spool,which reduces the effort required to hold the valve open and prevents unwanted heating of the oil.It is a detail that speaks volumes about Walvoil's understanding of system dynamics.

　　Manual Control and Spool Feel

　　The control method is listed as manual/mechanical.This implies a direct mechanical linkage between the operator's lever and the spool.In an era of joysticks and pilot controls,the manual valve offers a distinct advantage:tactile feedback.An experienced operator can"feel"the load through the lever.They can sense if a motor is cavitating or if a cylinder is stalling.The SDS180/1’s mechanical linkage provides this direct sensory connection,which is indispensable in troubleshooting and precision work,especially in environments where electronic reliability is a concern.

　　Key Technical Specifications

　　To provide a clear overview of the valve's capabilities,here are the critical specifications presented in a reader-friendly format:

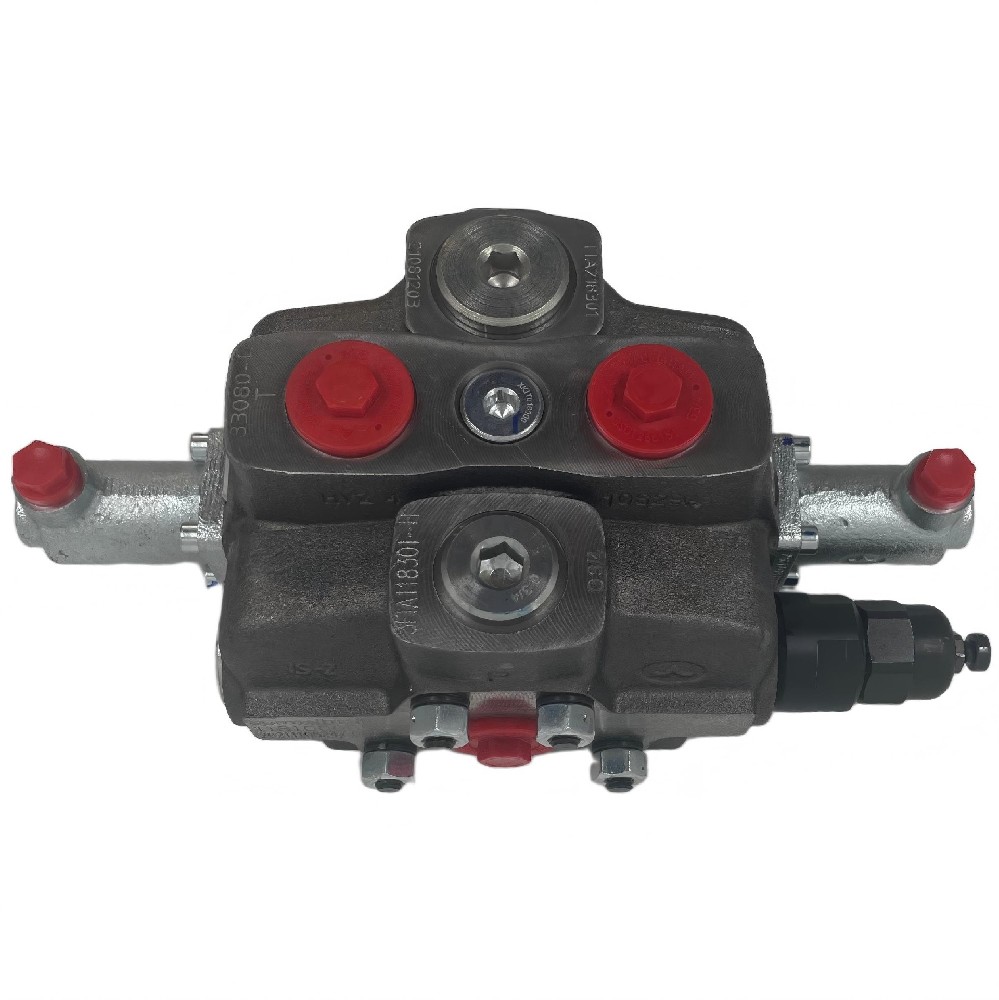

　　Model:Walvoil SDS180/1/AC(XG-210)/28L/RC

　　Configuration:Single spool(1-section)sectional valve

　　Pressure Rating:31.5 MPa(315 bar)maximum operating pressure,suitable for high-torque applications.

　　Flow Capacity:150 L/min nominal flow,designed for efficient high-speed actuator control.

　　Port Connections:Features G3/4”BSP ports for Pressure(P)and Work(A/B),with a G1”BSP Tank(T)port for optimized return flow.

　　Control Type:Manual/mechanical actuation,providing direct,reliable spool positioning with excellent operator feedback.

　　Internal Features:Incorporates a load check valve on the working section to prevent load drop during spool transition.

　　Circuit Type:Configurable for parallel or series circuit architecture depending on system requirements.

　　Construction:Robust cast iron/mild steel construction designed to withstand the rigors of mobile and industrial environments.

　　Critical Applications in Demanding Environments

　　The SDS180/1 is not a general-purpose valve for a tractor top-link;it is a specialist component for applications requiring high flow and high pressure in a single function.Its design parameters make it ideally suited for the following sectors:

　　Marine and Offshore Hydraulic Systems

　　Marine environments are unforgiving.Salt spray,constant motion,and the need for absolute reliability define the industry.The SDS180/1 is frequently specified for ship hydraulic systems,such as those controlling capstans,winches,or crane-slewing brakes.The manual control option is favored here because it eliminates the risk of solenoid failure in a wet environment.The high nickel content in the cast iron offers inherent corrosion resistance,and the large G1”tank port allows for long return lines common on large vessels without building destructive back pressure.

　　Hydraulic Rock Drilling Rigs

　　Rock drills,whether for quarrying or foundation work,subject hydraulic components to extreme vibration and pressure spikes.The SDS180/1 excels as a feed or rotation control valve on these rigs.The 315 bar rating ensures it can handle the high pressure required to fracture rock,while the robust spool design withstands the constant hammering and vibration without shifting unintentionally.The load check valve integrated into the section is vital here,holding the drill feed steady against gravity when the valve is centered.

　　Recovery Vehicles and Mobile Cranes

　　Road recovery vehicles and truck-mounted cranes require hydraulics that can operate immediately,regardless of engine speed or weather.The SDS180/1 is ideal for controlling roadside recovery equipment,such as hydraulic winches or under-lift axles.The high flow rate(150 L/min)allows winches to spool in quickly,reducing recovery time on a busy highway.Furthermore,the"AC"variant in the model number(SDS180/1/AC)often denotes specific spool options like anti-cavitation or shock valves,which are critical for winch braking control,preventing a load from running away downhill.

　　System Integration and Communication

　　In modern hydraulics,a valve cannot exist in isolation.It must communicate with the system,even if that communication is purely hydraulic.The SDS180/1 integrates seamlessly into broader systems through its flexible design.

　　Load Sensing Capability:While the base model is a simple manual valve,the SDS180 series has a Load Sensing variant known as the DLS180.If your system requires variable pump control to save energy,the DLS version of this single section can provide the LS signal to the pump,ensuring the system only produces the flow and pressure required by the load on that single spool.

　　Mechanical Linkage:The valve accepts various mechanical linkage kits,allowing for remote actuation via cables if direct manual control is not ergonomically possible.This flexibility allows engineers to place the valve body in a high-pressure location while keeping the operator station comfortable and safe.

　　Hydraulic Pilot Options:For high-force applications where manual effort is too high,the SDS180/1 can be configured for hydraulic pilot operation,allowing it to be controlled by a smaller remote joystick,thereby merging the reliability of a sectional valve with the ergonomics of modern control stations.

　　Reliability and Total Cost of Ownership

　　From a maintenance perspective,the SDS180/1 offers significant long-term value.The sectional design,even with only one section,means that if internal wear occurs,the valve can be disassembled.Spools and seals are serviceable items.Unlike welded monobloc valves which must be replaced entirely if damaged,the SDS180/1 can be rebuilt.

　　The durability of the SDS series is well-documented in the industry.Walvoil,as a key player in the Interpump Group,benefits from decades of metallurgical and tribological research.The spools are typically hardened and ground to micron-level tolerances,mating with the valve body to create a natural seal that minimizes leakage over time.This hard-on-hard wear surface,combined with the ability to replace seals without specialized tools,drastically reduces the machine's downtime and the total cost of ownership over the life of the equipment.

　　Selection Guidance:Is the SDS180/1 Right for Your Application?

　　Choosing the right valve is about matching the component to the task.Here is a practical guide to where this specific model excels and where it might be the wrong choice.

　　The SDS180/1 is the ideal choice when:

　　You need a high-flow(up to 150 L/min)single auxiliary function,such as a dedicated hydraulic motor drive.

　　Your system operates at high pressure(consistently near 315 bar)and requires a valve body that won't fatigue.

　　You prefer or require direct manual control for better operator feedback and reliability.

　　You are working in a corrosive or wet environment(marine,offshore)where electronics are a liability.

　　You are building or repairing equipment like forestry cranes,compactors,or large agricultural loaders where a robust,single-function circuit is needed.

　　Consider alternatives if:

　　You need multiple functions from one valve bank.In that case,you should look at the multi-section SDS180 variants(e.g.,SDS180/2,SDS180/3,or SDS180/12)which allow you to stack up to 12 sections for complex control.

　　Your application requires extremely low flow and compact size for a mini-excavator attachment;the SD6 or SD8 series might offer a more cost-effective solution.

　　You require complex electro-hydraulic proportional control with integrated electronics;a dedicated proportional valve with on-board electronics would be a better fit.

　　For operators of road tow trucks,shipyards running cranes,or mining companies operating hydraulic drills,the Walvoil SDS180/1 provides a level of single-function control that is difficult to match.It stands as a rugged,reliable,and precisely engineered solution for the world's most demanding hydraulic challenges.

　　Frequently Asked Questions(FAQ)

　　Q1:Can the Walvoil SDS180/1 be used to control a hydraulic motor,or is it only for cylinders?

　　Yes,it is well-suited for hydraulic motor control.The 150 L/min flow rate is ideal for medium-to-high speed motors.The valve's metering characteristics allow for smooth start-up and stopping of the motor.However,for motor applications,ensure you specify the correct spool type(e.g.,motor spool)which has the appropriate metering notches for over-center or over-running load conditions to prevent cavitation.

　　Q2:What is the difference between the standard SDS180/1 and the DLS180/1 version?

　　The primary difference is the hydraulic circuit.The standard SDS180 is an open center or closed center valve depending on the inlet.The DLS180 is the Load Sensing version.A DLS180/1 will have an additional passage for the load signal,allowing it to communicate with a pressure-compensated pump.This setup is more energy-efficient because the pump only supplies the exact flow and pressure demanded by the load on that single spool,rather than diverting excess oil over a relief valve.

　　Q3:The model number includes"AC(XG-210)/28L/RC".What do these suffixes typically indicate?

　　While Walvoil's coding can be specific to custom orders,these suffixes generally describe the configuration.

　　AC:Often refers to"Anti-Cavitation"or"Anti-Shock"valves integrated into the work ports.This is critical for applications with overrunning loads(like winches or booms)to prevent pressure spikes and cavitation.

　　28L:Likely specifies the spool type,spring centering configuration,or the specific metering characteristics designed for 150 L/min flow.

　　RC:Typically stands for"Remote Control"or indicates the type of mechanical cable control attachment mechanism.It suggests the valve is pre-drilled or equipped to accept a cable actuation kit.

　　For the exact decoding of your specific valve configuration,it is best to consult the Walvoil data sheet or order code key.

　　Q4:What maintenance does this valve require in a harsh environment like a rock drill?

　　Maintenance is relatively low but critical.The primary maintenance task is ensuring the hydraulic fluid remains clean,as contamination is the main cause of spool jamming or wear.Visually inspect the external linkages and the boot sealing the manual actuator for cracks or damage,as grit ingress here can score the spool.The SDS180 series is designed for serviceability;if spool performance degrades,the valve can often be disassembled to de-burr the spool or replace seals without removing the valve body from the machine.

　　Q5:Is this valve compatible with biodegradable hydraulic fluids?

　　Generally,yes.Walvoil valves are compatible with most mineral-based and many environmentally friendly hydraulic fluids(such as synthetic esters or vegetable-based oils).However,some biodegradable fluids can be aggressive to certain seal materials over time.If you are using a specific type of bio-oil(e.g.,HEES or HETG),it is advisable to verify seal compatibility with the fluid manufacturer or consult Walvoil's technical support to ensure the standard Buna-N or Viton seals are appropriate for long-term service.
