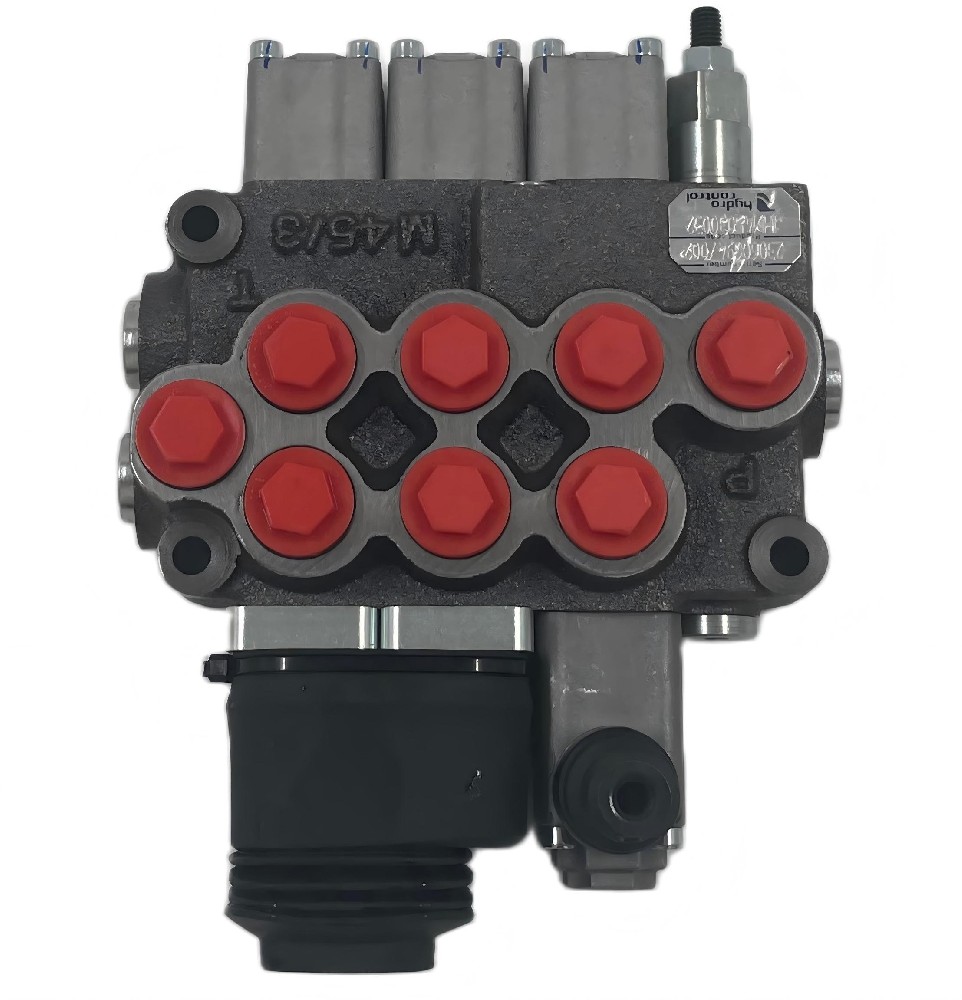

The Hedey Hydro Control HC-M45/3 is a precision-engineered hydraulic valve manifold designed for demanding mobile applications.Featuring robust hydraulic manual control valves,this monoblock unit delivers reliable,tactile command over hydraulic functions where operator feedback and system durability are critical for productivity and safety.

　　Beyond the Joystick:The Case for Manual Hydraulics

　　In the cab of a road compactor or on the deck of a fishing vessel,the operator is not just a supervisor;they are an extension of the machine.There is a direct,physical conversation happening between the gloved hand and the hydraulic actuator.A slight nudge of a lever can mean the difference between smoothly placing a load and jerking it.In these environments,the binary logic of a solenoid or the delayed response of an electronic joystick can introduce inefficiency and even danger.

　　This reality defines the enduring relevance of the Hedey Hydro Control HC-M45/3.It is a hydraulic valve manifold built not as a concession to outdated technology,but as a specialized tool for applications requiring nuanced,human-guided power.Unlike complex electro-hydraulic systems that require diagnostic software to troubleshoot,this manifold communicates through the language of pressure and flow,with the operator as the central processor.Its monoblock construction—a single,machined iron casting—eliminates the leak paths inherent in stacked valve assemblies,ensuring that hydraulic energy stays contained and directed precisely where it is needed,even under the constant vibration of a marine diesel engine or the jarring impacts of earthmoving.

　　The Architecture of Direct Control

　　The HC-M45/3 represents a specific philosophy in fluid power:that reliability is achieved through simplicity and robust engineering.It is designed for systems where the primary goal is consistent,repeatable manual override capability.The monoblock houses all internal passages—pressure inlet(P),work ports(A and B),and tank return(T)—within a single,rigid structure.This design inherently resists the torsional stresses that can cause misalignment in multi-piece valve stacks,preserving the precise clearance between the manual spools and their bores over decades of use.For applications that demand a different flow capacity or number of functions,the Hydro Control series includes other configurations,ensuring design flexibility for engineers building out a complete machine architecture.

　　Technical Deep Dive:Translating Specifications into Operational Advantage

　　An engineer reads a datasheet for certainty.The following section decodes the critical specifications of this hydraulic valve manifold,explaining how they contribute to machine stability,operator control,and long-term system health.

　　35 MPa Rated Pressure:The Foundation of Structural Integrity

　　The 35 MPa(approximately 350 bar)continuous pressure rating is not merely a number;it is a declaration of the manifold's material strength and design margin.In practical terms,this rating ensures the casting can withstand the repeated stress cycles of high-pressure operation without fatigue.

　　How it impacts operations:For a ship's hydraulic winch control,this pressure rating guarantees that the manifold can handle the full stall torque of the motor when hauling a heavy catch.More importantly,it provides a safety buffer for pressure spikes.When an excavator bucket strikes a buried rock,the resulting shock wave travels back through the hydraulic fluid.A manifold with insufficient margin could micro-fracture internally.The HC-M45/3's robust iron casting absorbs these shocks,maintaining its structural integrity and ensuring that the internal metering edges remain sharp for precise flow control,year after year.

　　45 L/min Flow Capacity:Calibrated for Precision

　　Flow rate dictates speed.At 45 liters per minute,this manifold is intentionally tuned for controlled,accurate actuator movement rather than raw,high-speed operation.This is achieved through the geometry of the spools themselves.

　　How it impacts operations:The spools within this hydraulic valve manifold feature precisely machined metering notches.As the operator moves the manual lever,these notches gradually open the flow path.At 45 L/min,these notches are sized to provide excellent"feathering"capability—allowing the operator to partially open a valve for slow,creeping movement.In a road paving application,this means the screed can be adjusted in microscopic increments to achieve a perfect mat surface.If the flow were significantly higher,the same notches would cause the actuator to jump,sacrificing the fine control that manual operation is meant to provide.

　　G3/8"BSPP Ports:A Standard for Global Integration

　　The specification of G3/8"parallel threads(BSPP)across all main ports(P,A,B,T)is a critical detail for system integration.This standard,common in European and Asian hydraulic systems,ensures reliable sealing and widespread fitting availability.

　　How it impacts operations:Parallel thread ports seal by compressing a soft metal or elastomeric ring against a face,rather than by jamming threads together.This creates a more reliable seal that is less likely to gall or leak when reassembled.For a maintenance team working on a mobile drilling rig in a remote location,this means they can confidently remove and reconnect hoses without worrying about damaging the port threads.The G3/8"size is also hydraulically matched to the 45 L/min flow,ensuring that fluid velocity through the ports does not become turbulent,which would generate unnecessary heat and pressure drop.

　　The Enduring Value Proposition of Manual Control

　　Choosing hydraulic manual control valves in an increasingly automated world is a strategic decision based on total cost of ownership and operational reliability.

　　Diagnostic Simplicity:When a function on an electronically controlled machine fails,troubleshooting often requires a laptop,software,and schematic interpretation.When a function on an HC-M45/3 system fails,the diagnosis is often visual and tactile.Is the lever moving freely?Is the spool stuck?Is there flow from the pump?This simplicity translates directly to less downtime and lower reliance on specialized technicians.

　　Environmental Hardiness:The HC-M45/3 has no circuit boards to corrode,no solenoids to burn out from voltage spikes,and no position sensors to be fouled by dust.In the high-vibration,contaminant-rich environment of a road construction site,this hardiness makes it a superior choice for critical safety functions like outrigger controls or boom articulation.

　　Operator Empowerment:The direct mechanical linkage provides continuous feedback.The operator can feel changes in load through the lever,sensing if a pump is cavitating or a cylinder is meeting unexpected resistance.This allows for real-time adjustments that protect the machine from damage and allow for more efficient work cycles.

　　Primary Specifications Overview

　　To facilitate accurate system design,the core operational parameters of the HC-M45/3 are defined as follows:

　　Maximum Operating Pressure:The manifold is engineered for continuous duty at 35 MPa,providing substantial safety margins for shock loads in mobile equipment.

　　Nominal Flow Rate:Optimized for precise actuator control,the valve is rated for a nominal flow of 45 L/min,ensuring excellent metering characteristics.

　　Port Thread Standard:All fluid ports feature G3/8"BSPP parallel threads,ensuring leak-free connections with standard global hydraulic fittings.

　　Control Type:The valve bank utilizes robust mechanical manual levers,offering direct,tactile control without reliance on electrical power or electronics.

　　Construction:The monoblock cast iron design provides a rigid,compact structure that minimizes potential leak paths and withstands extreme mechanical stress.

　　Key Application Environments

　　The performance profile of the HC-M45/3 makes it particularly well-suited to specific sectors where manual intervention and system resilience are paramount.

　　Mobile Construction and Earthmoving Equipment

　　On machinery such as compactors,small excavators,and backhoe loaders,operators require immediate control over attachments.This hydraulic valve manifold allows for the precise modulation of bucket curl or blade angle.When grading a surface,the operator can make continuous,minute adjustments to the blade based on visual feedback,a task that is difficult to replicate with on/off electronic controls.The manifold's robust construction withstands the constant vibration and shock loading inherent in these applications.

　　Marine and Offshore Deck Machinery

　　Saltwater corrosion and the critical need for fail-safe operation make manual hydraulics the standard for many marine applications.The HC-M45/3 is ideal for controlling winches,capstans,and steering systems on workboats and fishing vessels.The absence of electronics eliminates a major failure point.Furthermore,in an emergency,a manual valve can be operated directly,even if the pilot hydraulic system or prime mover is compromised.The cast iron body offers superior resistance to the corrosive marine atmosphere compared to anodized aluminum alternatives.

　　Specialized Industrial and Mobile Plant Equipment

　　This includes applications like truck-mounted cranes,auxiliary functions on drilling rigs,and railway maintenance vehicles.These machines often operate in remote locations or sit idle for periods.The HC-M45/3 provides"instant on"reliability.For leveling a drilling rig on uneven terrain,the manual control allows the operator to inch each outrigger cylinder down independently,using visual and tactile feedback to achieve a perfectly stable platform before operations begin.

　　Integration and Lifecycle Management

　　Integrating the HC-M45/3 into a hydraulic circuit is straightforward.It is typically placed downstream of a fixed-displacement gear pump and a system relief valve.The G3/8"ports allow for direct connection to standard hose assemblies.

　　From a maintenance perspective,the monoblock design simplifies rebuilds.Because there are no inter-section seals,the risk of external leaks is significantly lower than with stack valves.If a spool wears over time,it can be accessed by removing the manual lever mechanism and extracting it from the block.Preventative maintenance focuses on fluid cleanliness;maintaining a contamination control code of-/18/15 or better per ISO 4406 is essential to prevent abrasive wear between the precision spools and their bores.

　　Professional Selection Criteria

　　Selecting the correct hydraulic valve manifold is a decision that impacts machine control,efficiency,and maintenance costs.

　　The HC-M45/3 is the optimal selection when:

　　The application demands direct operator feedback and tactile control.

　　The hydraulic system operates continuously at pressures up to 35 MPa.

　　Actuator speed requirements are moderate and align with a 45 L/min flow.

　　The machine operates in harsh environments with dust,vibration,or moisture.

　　System simplicity and ease of field diagnosis are high priorities.

　　This specific manifold is less suitable for:

　　Applications requiring very high actuator speeds demanding flow above 60 L/min.

　　Systems that mandate remote,automated,or PLC-based solenoid control.

　　Environments where absolutely zero internal leakage is required(manual spools have inherent clearance leakage).

　　Applications requiring a high number of functions in a single valve bank beyond the physical sections of the monoblock.

　　For system architectures that demand different performance characteristics,exploring alternative configurations within the broader Hedey manual valve portfolio is recommended to ensure an optimal match between the valve and the machine's duty cycle.

　　Frequently Asked Questions(FAQ)

　　Q:What does"monoblock"mean,and how does it benefit my hydraulic system?

　　A:Monoblock refers to a valve construction where all spool bores and internal passageways are machined into a single,solid casting.The primary benefit is a significant reduction in potential leak points,as there are no seals between sections like in stack valves.This results in a more compact,rigid unit that is less likely to leak or distort under pressure and vibration.

　　Q:Can I remotely operate this manual valve without replacing it?

　　A:Yes,but not with solenoids.The most common method for remote operation of a manual valve is through mechanical cabling,similar to a throttle or brake cable.You can also use a hydraulic pilot system,where a small,remotely located joystick valve sends pilot oil pressure to shift the main spools in the HC-M45/3.

　　Q:My hoses use JIC fittings.Can I connect them to the G3/8"ports?

　　A:Absolutely.G3/8"BSPP ports are parallel threads that seal via a captive O-ring or a bonded washer on the face of the port.Standard hydraulic adapters are readily available that convert from G3/8"BSPP male or female threads to JIC 37-degree flare,NPT,ORFS,or metric port configurations,ensuring full system compatibility.

　　Q:What kind of maintenance does this valve require?

　　A:The valve itself requires very little direct maintenance.The most critical task is maintaining clean hydraulic fluid.Contaminants are the primary cause of spool scoring and jamming.Periodically check the manual lever linkage for tightness and lubrication.If external leakage develops,the dynamic seals on the lever shaft may eventually need replacement after many years of service.

　　Q:How do I hold a load,like an outrigger,without the cylinder drifting down?

　　A:The HC-M45/3 spools are directional control valves,not load-holding valves.To hold a load safely,you must incorporate pilot-operated check valves in the circuit.These can be integral to the valve manifold(if specified with port reliefs/lock valves)or,more commonly,installed directly on the cylinder ports.The check valve locks the oil in the cylinder,while the manual valve controls the pilot signal to release it.
